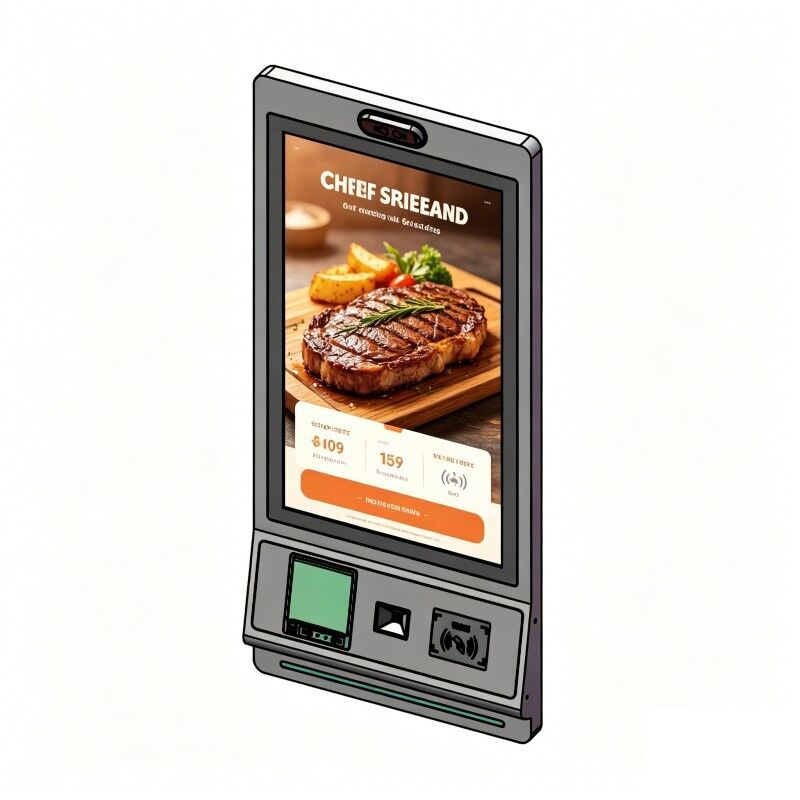

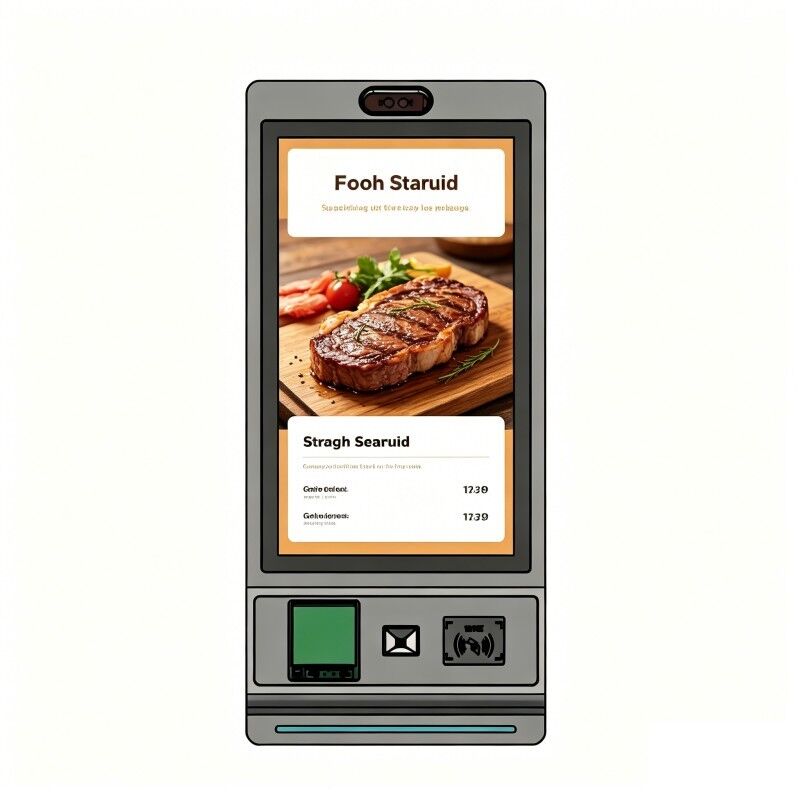

32 inch Vertical Touch Self Ordering Kiosk Pos System Payment Kiosk Machine CE Certified
Against the backdrop of the catering and retail industries' continuous pursuit of efficiency and experience upgrades, the 32-inch Vertical Touch Self Ordering Kiosk is becoming a core device for the digital transformation of stores. Through its vertical screen interactive design and highly integrated POS system, it integrates ordering, payment, and data management, effectively alleviating queuing pressure and significantly improving operational efficiency and customer satisfaction. It is an indispensable tool for modern smart stores.
| 32-inch Wall-mounted self-service machine |
| LCD Panel Parameters |
Screen Size |
32 inch |
| Display area |
698(H) X 391.8(V)mm |
| Aspect Ratio |
16:9 |
| LCD Type |
a-Si TFT-LCD |
| Max Resolution |
1920 X 1080 |
| Display color |
16.7M , 72% NTSC |
| Brightness |
400 cd/㎡ |
| Contrast Ratio |
1200 :1 |
| Viewing angle(up/down/left/right) |
89/89/89/89 (Typ.)(CR≥10) |
| Response Time |
20ms |
| LCD Panel Life(hrs) |
60,000(hrs) |
| Field Frequency |
60Hz |
| PCAP Touchscreen Panel Parameters |
Touch style |
Projected Capacitive Touch screen |
| Touch points |
10 points |
| Cover Glass |
Physical toughened Morse magnitude 7 explosion-proof |
| Anti-microbial protection and Shatterproof Protection |
| Optically bonded 3mm glass for low parallax |
| The glass transmittance |
>88%(Higher transmittance depends on the glass surface treatment technology, eg AR/AG) >88% |
| Response speed |
< 6ms |
| Accuracy of touch |
More than 90% of the touch area ±2mm |
| Touch ways |
Fingers, touch pen |
| Output format |
The coordinate output |
| Clicks time |
Unlimited |
| The smallest touch size |
5mm |
| Long resistance |
Yes available |
| Touch Interfaces |
USB |
| Operating temperature & Humidity |
below10℃ ~ +50℃, ≤ 85%RH |
| Storage temperature & Humidity |
below20℃ ~ +60℃, ≤ 90%RH |
| Mini PC Parameters (Fan-less Industrial PC) |
CPU |
Intel Celeron J1900 |
| RAM |
8GB |
| SSD |
64GB |
| WIFI |
150Mbps 802.11n wifi integate |
| Network port |
RJ45, 10M/100M Adaptive Ethernet |
| Interface |
2 * RJ45 GB Ethernet |
| 2 * RS232 Serial Port |
| operating system |
Win10 or win11 optional |
| Onboard interface |
HDMI input |
1 |
| VGA input |
1 |
| DVI input |
1 |
| USB Type B or Any USB Type optional |
1 |
| Parts(Built-in) |
QR/Barcode Reader |
Can recognize 1D barcode and 2D barcode |
| Receipt Printer |
80mm Thermal printer with cutter |
| Power |
Power supply |
AC 100V~240V, 50/60Hz |
| The Max power loss |
≤ 45w |
| Standby power loss |
< 1W |
| Features |
Operating temperature |
0℃ ~ 50℃ |
| Storage temperature |
below10℃ ~ +60℃ |
| Accessories |
The length of Power Cable |
1.5m |
| The length of HDMI Cable |
2m |
| The length of USB-A to USB-B Cable |
1.5m |
| Versatile Mounting Solution |
Wall Mounted |
with walll mount bracket |
| Stand Holder(Optional) |
Movable, can be with wheels on the base, height is adjustable |
| Package size |
Machine body size |
Customized |
| Net weight |
Customized |
| Unit Package size |
550(H) ×160(W) × 1300(D) mm |
| The Gross weight of Unit Package |
Approx. 20 kg –25 kg |
The 32-Inch ODM Self-Order Kiosk is not only powerful in function, but also excels in hardware configuration:
32-inch HD touchscreen: 1920×1080 resolution, capacitive multi-touch, highly responsive
Multi-system support: Compatible with Android/Windows, adaptable to different software ecosystems
High-performance configuration options: Intel i3/i5/i7 or ARM architecture to meet different project needs
Modular expansion design: Flexible combination of barcode scanner, printer, and facial recognition camera
Multi-network connectivity: WiFi/LAN/4G, ensuring stable online connectivity
Its stable operating capabilities make it suitable for long-term use in high-traffic, high-frequency ordering restaurant environments.
As a device that supports deep customization, the 32 Inch ODM Self-Order Kiosk boasts strong OEM/ODM capabilities:
Customizable appearance and structure (freestanding/wall-mounted/desktop)
Customizable brand logo and UI
Flexible adjustment of screen size and configuration
Free combination of payment module and peripherals
Whether you are a brand chain or a system integrator, you can create a customized solution based on your own business needs.
If you would like to get the specification about above product, or you hope to discuss your requirements or need any additional information on our this product , then please do not hesitate to send us a inquiry and contact our sales team now.
