21.5 Inch Self-Service Kiosk Machine with Capacitive Touchscreen for Self-Service Ordering & Payment

21.5 Inch Self-Service Kiosk Machine with Capacitive Touchscreen for Self-Service Ordering & Payment

21.5 inch self-service kiosk machine

capacitive touchscreen ordering kiosk

self-service payment kiosk with touchscreen

Luogo di origine:

Guangdong, Cina

Marca:

ZXTLCD

Certificazione:

CE/Rohs/FCC

Numero di modello:

ZXTLCD-SOK215W002

Contattici
Richieda una citazione
Dettagli del prodotto
Dimensioni dello schermo:
21,5 pollici
tipo di pannello:
IPS di grado A+ originale BOE
Luminosità:
250 cd/m2
Risoluzione:
1920X1080
Angolo di visione:
178°/178° (orizzontale/verticale)
Consumo energetico:
80 W
Temperatura operativa:
Da 0°C a 50°C
Materiale del mobile:
Cassa in metallo + vetro
Schermo tattile:
Touchscreen capacitivo a 10 punti
Lettore NFC/scanner/lettore QR:
Supporto, integrato
Stampante termica da 80 mm:
Supporto, integrato
Scanner del passaporto:
Opzionale
Installazione terminale POS:
Ripristina spazio
Alimentazione elettrica:
CA 100~240 V, 50 Hz-60 Hz
Applicazione:
Ospitalità, albergo e ristorazione
Protipo:
Da tavolo/a pavimento/montato a parete (opzionale)
Evidenziare:
chiosco interattivo per ordini self-service, chiosco interattivo per ordini self-service, chiosco in
Evidenziare:

21.5 inch self-service kiosk machine

,

capacitive touchscreen ordering kiosk

,

self-service payment kiosk with touchscreen

Termini di trasporto & di pagamento
Quantità di ordine minimo
1
Prezzo
Negoziabile
Imballaggi particolari
cassa di legno, cartone, flight case sono opzionali
Tempi di consegna
3-5 giorni lavorativi
Termini di pagamento
L/C,T/T,Western Union,MoneyGram
Capacità di alimentazione
2000 pezzi al mese
Descrizione di prodotto

21.5 Inch Self-Service Kiosk Machine with Capacitive Touchscreen for Self-Service Ordering & Payment


In the context of increasingly fierce competition in the catering industry, improving service efficiency and customer experience has become crucial for store operations. This 21.5-inch self-service ordering machine, with intelligent touch interaction at its core, integrates ordering, payment, and order management, helping catering businesses achieve a digital upgrade of their service processes.


By reducing reliance on manual labor and optimizing the ordering path, this device not only effectively alleviates queuing pressure during peak hours but also improves overall table turnover efficiency, making it an ideal solution for modern fast-food restaurants, chain restaurants, and high-traffic commercial scenarios.

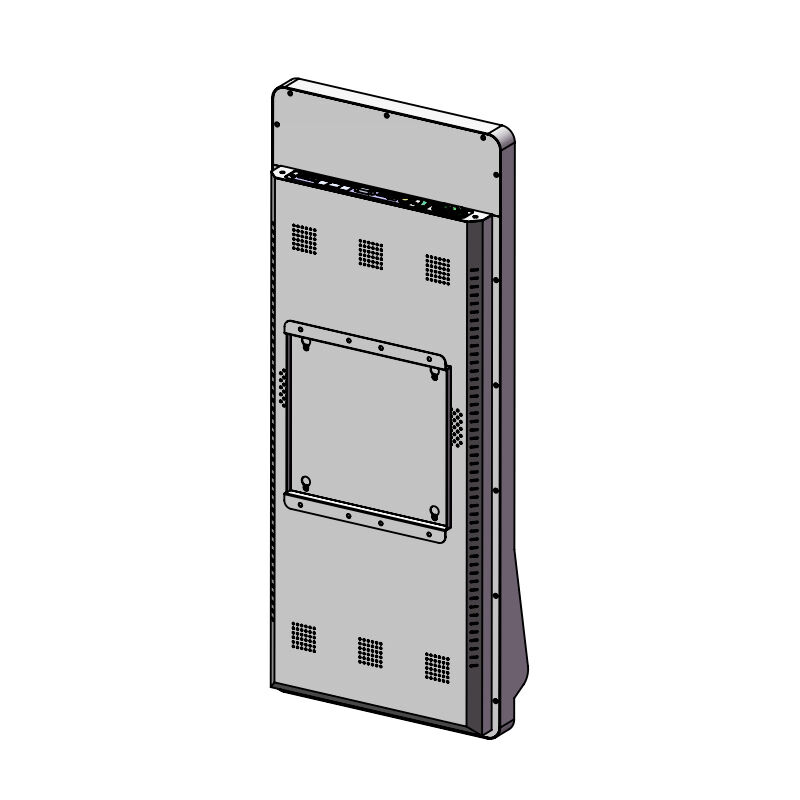

21.5-inch wall-mounted self-service machine
LCD Panel Parameters Screen Size 21.5 inch
Display area 476.5(H) X 268(V)mm
Aspect Ratio  16:9
LCD Type a-Si TFT-LCD
Max Resolution 1920 X 1080
Display color 16.7M , 72% NTSC
Brightness 350 cd/㎡
Contrast Ratio  3000:1
Viewing angle(up/down/left/right) 89/89/89/89 (Typ.)(CR≥10)
Response Time 20ms
LCD Panel Life(hrs) 60,000(hrs)
Field Frequency  60Hz
PCAP  Touchscreen Panel Parameters Touch style Projected Capacitive Touch screen
Touch points 10 points
Cover Glass Physical toughened Morse magnitude 7 explosion-proof
Anti-microbial protection and Shatterproof Protection
Optically bonded 3mm glass for low parallax
The glass transmittance >88%(Higher transmittance depends on the glass surface treatment technology, eg AR/AG) >88%
Response speed < 6ms
Accuracy of touch More than 90% of the touch area ±2mm
Touch ways Fingers, touch pen
Output format The coordinate output
Clicks time Unlimited
The smallest touch size 5mm
Long resistance Yes available
Touch Interfaces USB
Operating temperature & Humidity below10℃ ~ +50℃, ≤ 85%RH
Storage temperature & Humidity below20℃ ~ +60℃, ≤ 90%RH
Mini PC Parameters (Fan-less Industrial PC) CPU Intel Celeron J1900
RAM 8GB
SSD 64GB
WIFI 150Mbps 802.11n wifi integate
Network port RJ45, 10M/100M Adaptive Ethernet
Interface 2 * RJ45 GB Ethernet
2 * RS232 Serial Port
operating system Win10 or win11 optional
Onboard interface HDMI input 1
VGA input 1
DVI input 1
USB Type B or Any USB Type optional 1
Parts(Built-in) QR/Barcode Reader Can recognize 1D barcode and 2D barcode
Receipt Printer 80mm Thermal printer with cutter
Power Power supply AC 100V~240V, 50/60Hz
The Max power loss ≤ 45w
Standby power loss < 1W
Features Operating temperature  0℃ ~ 50℃
Storage temperature  below10℃ ~ +60℃
Accessories The length of Power Cable 1.5m
The length of HDMI Cable 2m
The length of USB-A to USB-B Cable 1.5m
Versatile Mounting Solution Wall Mounted with walll mount bracket
Stand Holder(Optional) Movable, can be with wheels on the base, height is adjustable
Package size Machine body size Customized
Net weight Customized
Unit Package size  355.80(H) ×88.80(W) × 862.20(D) mm
The Gross weight of Unit Package  Approx. 15–25 kg




1. Large High-Definition Touchscreen for Enhanced Interactive Experience


The device features a 21.5-inch high-definition capacitive touchscreen, providing clear display and sensitive touch response. The interface design conforms to the logic of catering use, allowing customers to intuitively browse, select, and place orders, making the entire ordering process smoother and more natural.


2. Fully Self-Service Operation, Reducing Manual Reliance


From ordering to payment, everything can be completed independently by the customer without waiter intervention, effectively reducing the store's manpower burden. It also reduces human error, improves order accuracy, and standardizes restaurant operations.


3. High-efficiency payment system for faster transactions


Supports mainstream mobile payment methods and various electronic payment interfaces, enabling rapid settlement. The payment process is simple and efficient, helping to shorten customer waiting time and improve overall store turnover efficiency.


4. Stable industrial-grade structure for high-frequency use


The machine features a metal structure design combined with a wear-resistant tempered glass panel, providing excellent impact resistance and durability. It can support long-term continuous operation, making it suitable for high-traffic catering environments, ensuring stability and reliability.

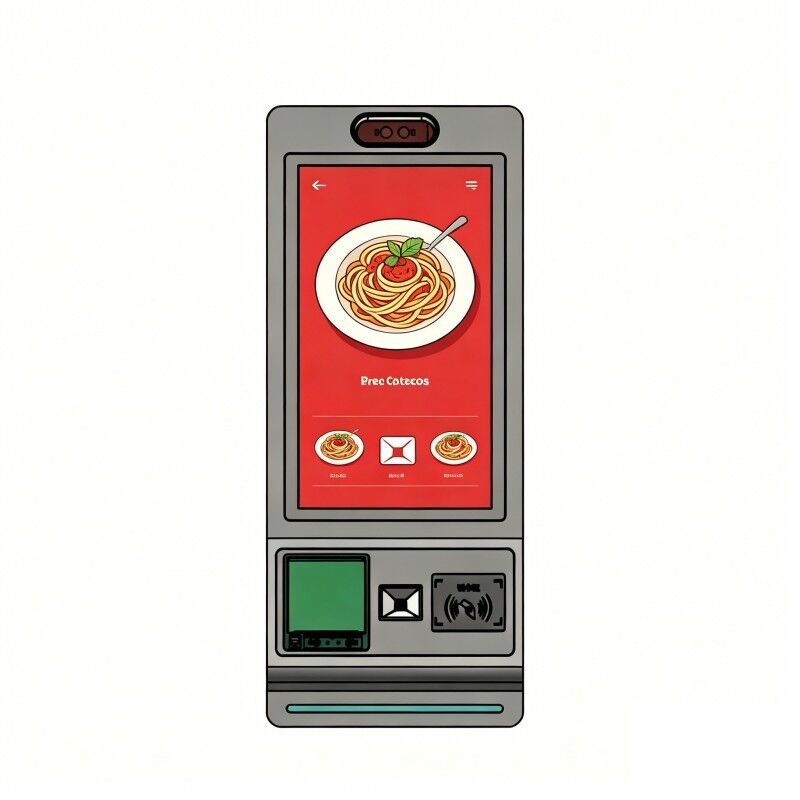

21.5 Inch Self-Service Kiosk Machine with Capacitive Touchscreen for Self-Service Ordering & Payment 0

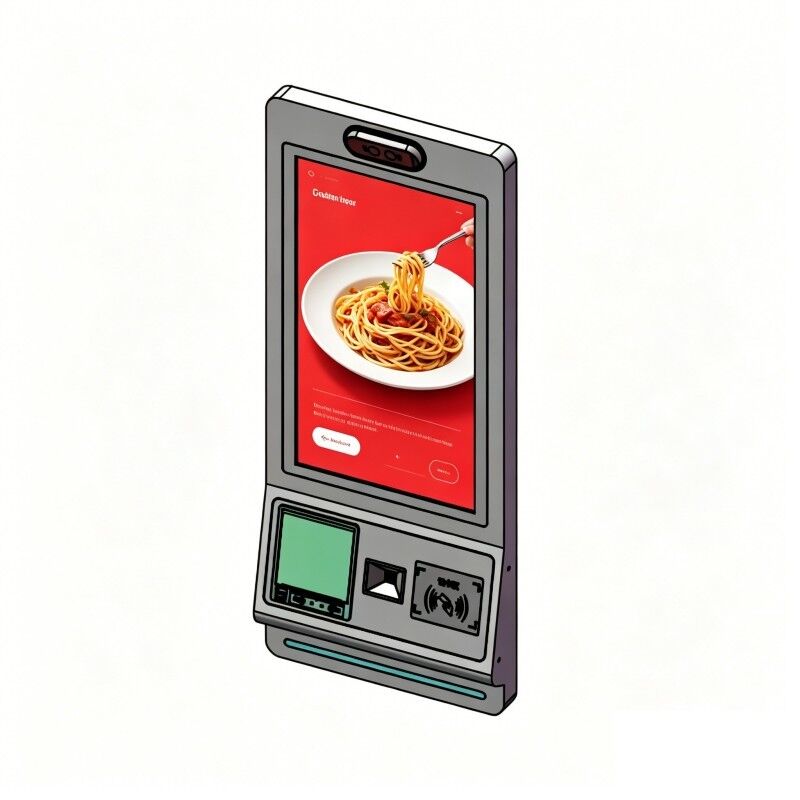

21.5 Inch Self-Service Kiosk Machine with Capacitive Touchscreen for Self-Service Ordering & Payment 1


this 21.5-inch self-service ordering machine is not just an ordering device, but also an important tool for catering stores to achieve digital operations. By optimizing service processes, reducing labor costs, and improving user experience, it helps catering businesses establish a more efficient operating system in a highly competitive market.


In the future development of the catering industry, intelligence and automation will become core trends, and self-service ordering terminals are an important carrier of this trend. Choosing this equipment means choosing a more efficient, stable, and scalable catering business model.


If you would like to get the specification about above product, or you hope to discuss your requirements or need any additional information on our this product , then please do not hesitate to send us a inquiry and contact our sales team now.
