18.5'' Android/windows System Desktop Kiosk Payment Machine Self Service Ordering Checkout Kiosk

18.5'' Android/windows System Desktop Kiosk Payment Machine Self Service Ordering Checkout Kiosk

18.5 inch Android Windows kiosk

self service ordering checkout machine

desktop payment kiosk with warranty

Luogo di origine:

Guangdong, Cina

Marca:

ZXTLCD

Certificazione:

CE/Rohs/FCC

Numero di modello:

ZXTLCD-SOK185W001

Contattici
Richieda una citazione
Dettagli del prodotto
Dimensioni dello schermo:
18,5 pollici
tipo di pannello:
IPS di grado A+ originale BOE
Luminosità:
250 cd/m2
Risoluzione:
1920X1080
Angolo di visione:
178°/178° (orizzontale/verticale)
Consumo energetico:
80 W
Temperatura operativa:
Da 0°C a 50°C
Materiale del mobile:
Cassa in metallo + vetro
Schermo tattile:
Touchscreen capacitivo a 10 punti
Lettore NFC/scanner/lettore QR:
Supporto, integrato
Stampante termica da 80 mm:
Supporto, integrato
Scanner del passaporto:
Opzionale
Installazione terminale POS:
Ripristina spazio
Alimentazione elettrica:
CA 100~240 V, 50 Hz-60 Hz
Applicazione:
Ospitalità, albergo e ristorazione
Protipo:
Da tavolo/a pavimento/montato a parete (opzionale)
Evidenziare:
chiosco interattivo per ordini self-service, chiosco interattivo per ordini self-service, chiosco in
Evidenziare:

18.5 inch Android Windows kiosk

,

self service ordering checkout machine

,

desktop payment kiosk with warranty

Termini di trasporto & di pagamento
Quantità di ordine minimo
1
Prezzo
Negoziabile
Imballaggi particolari
cassa di legno, cartone, flight case sono opzionali
Tempi di consegna
3-5 giorni lavorativi
Termini di pagamento
L/C,T/T,Western Union,MoneyGram
Capacità di alimentazione
2000 pezzi al mese
Descrizione di prodotto

18.5'' Android/windows System Desktop Kiosk Payment Machine Self Service Ordering Checkout Kiosk


With increasingly compact store spaces and ever-growing demands for operational efficiency, desktop self-service kiosks are becoming the preferred solution for a growing number of catering and retail businesses. This 18.5-inch vertical desktop self-service ordering machine, with its compact structure and efficient interaction at its core, offers a more flexible and practical digital solution for counter settings.


18.5-inch wall-mounted self-service machine
LCD Panel Parameters Screen Size 18.5 inch
Display area 410(H) X 230(V)mm
Aspect Ratio  16:9
LCD Type a-Si TFT-LCD
Max Resolution 1920 X 1080
Display color 16.7M , 72% NTSC
Brightness 350 cd/
Contrast Ratio  3000:1
Viewing angle(up/down/left/right) 89/89/89/89 (Typ.)(CR≥10)
Response Time 20ms
LCD Panel Life(hrs) 60,000(hrs)
Field Frequency  60Hz
PCAP  Touchscreen Panel Parameters Touch style Projected Capacitive Touch screen
Touch points 10 points
Cover Glass Physical toughened Morse magnitude 7 explosion-proof
Anti-microbial protection and Shatterproof Protection
Optically bonded 3mm glass for low parallax
The glass transmittance >88%(Higher transmittance depends on the glass surface treatment technology, eg AR/AG) >88%
Response speed < 6ms
Accuracy of touch More than 90% of the touch area ±2mm
Touch ways Fingers, touch pen
Output format The coordinate output
Clicks time Unlimited
The smallest touch size 5mm
Long resistance Yes available
Touch Interfaces USB
Operating temperature & Humidity below10 ~ +50, ≤ 85%RH
Storage temperature & Humidity below20 ~ +60, ≤ 90%RH
Mini PC Parameters(Fan-less Industrial PC) CPU Intel Celeron J1900
RAM 8GB
SSD 64GB
WIFI 150Mbps 802.11n wifi integate
Network port RJ45, 10M/100M Adaptive Ethernet
Interface 2 * RJ45 GB Ethernet
2 * RS232 Serial Port
operating system Win10 or win11 optional
Onboard interface HDMI input 1
VGA input 1
DVI input 1
USB Type B or Any USB Type optional 1
Parts(Built-in) QR/Barcode Reader Can recognize 1D barcode and 2D barcode
Receipt Printer 80mm Thermal printer with cutter
Power Power supply AC 100V~240V, 50/60Hz
The Max power loss ≤ 45w
Standby power loss < 1W
Features Operating temperature  0 ~ 50
Storage temperature  below10 ~ +60
Accessories The length of Power Cable 1.5m
The length of HDMI Cable 2m
The length of USB-A to USB-B Cable 1.5m
Versatile Mounting Solution Wall Mounted with walll mount bracket
Stand Holder(Optional) Movable, can be with wheels on the base, height is adjustable
Package size Machine body size Customized
Net weight Customized
Unit Package size  317.6(H) × 88.80(W) × 796.60(D) mm
The Gross weight of Unit Package  Approx. 10 – 15 kg

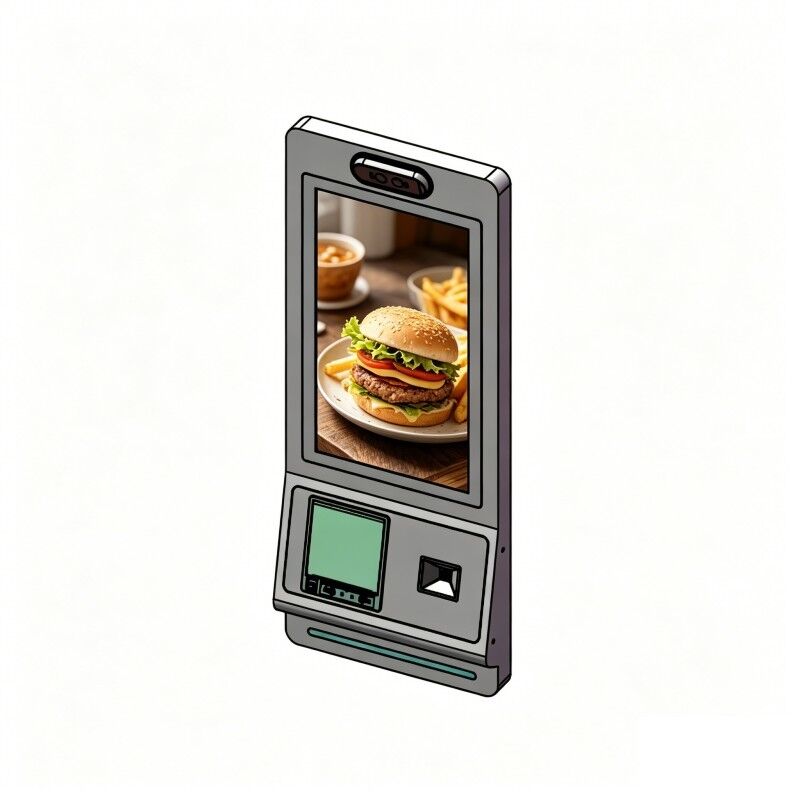

The device features an 18.5-inch high-definition touchscreen with a resolution of 1920×1080, clearly displaying menus, product images, and promotional information. The vertical screen design aligns better with user browsing habits, making content hierarchy more intuitive, allowing customers to quickly complete selections and place orders. Combined with highly sensitive capacitive touch technology, the operation is smooth and natural, maintaining stable performance even during peak hours.

18.5'' Android/windows System Desktop Kiosk Payment Machine Self Service Ordering Checkout Kiosk 0



18.5'' Android/windows System Desktop Kiosk Payment Machine Self Service Ordering Checkout Kiosk 1


Compared to traditional vertical devices, the biggest advantage of the desktop model is its "space utilization." The device can be placed directly on the cashier or countertop without requiring additional space, making it ideal for stores with limited area or those needing to efficiently utilize counter space. Its compact structure also reduces installation difficulty; it's ready to use immediately upon startup, making deployment more convenient.
