21.5" Standing Payment Kiosk Self Service Ordering Machine With Barcode Scanner and Printer

21.5" Standing Payment Kiosk Self Service Ordering Machine With Barcode Scanner and Printer

21.5 inch self service kiosk with barcode scanner

standing payment kiosk with printer

self ordering machine with touchscreen

Luogo di origine:

Guangdong, Cina

Marca:

ZXTLCD

Certificazione:

CE/Rohs/FCC

Numero di modello:

ZXTLCD-SOK215DB001

Contattici
Richieda una citazione
Dettagli del prodotto
Dimensioni dello schermo:
21,5 pollici
tipo di pannello:
IPS di grado A+ originale BOE
Luminosità:
350 cd/m²
Risoluzione:
1920X1080
Angolo di visione:
178°/178° (orizzontale/verticale)
Consumo energetico:
80 W
Temperatura operativa:
Da 0°C a 50°C
Materiale del mobile:
Cassa in metallo + vetro
Schermo tattile:
Touchscreen capacitivo a 10 punti
Lettore NFC/scanner/lettore QR:
Supporto, integrato
Stampante termica da 80 mm:
Supporto, integrato
Scanner del passaporto:
Opzionale
Installazione terminale POS:
Ripristina spazio
Alimentazione elettrica:
CA 100~240 V, 50 Hz-60 Hz
Applicazione:
Ospitalità, albergo e ristorazione
Protipo:
Da tavolo/a pavimento/montato a parete (opzionale)
Evidenziare:
chiosco interattivo per ordini self-service, chiosco interattivo per ordini self-service, chiosco in
Evidenziare:

21.5 inch self service kiosk with barcode scanner

,

standing payment kiosk with printer

,

self ordering machine with touchscreen

Termini di trasporto & di pagamento
Quantità di ordine minimo
1
Prezzo
Negoziabile
Imballaggi particolari
cassa di legno, cartone, flight case sono opzionali
Tempi di consegna
3-5 giorni lavorativi
Termini di pagamento
L/C,T/T,Western Union,MoneyGram
Capacità di alimentazione
2000 pezzi al mese
Descrizione di prodotto

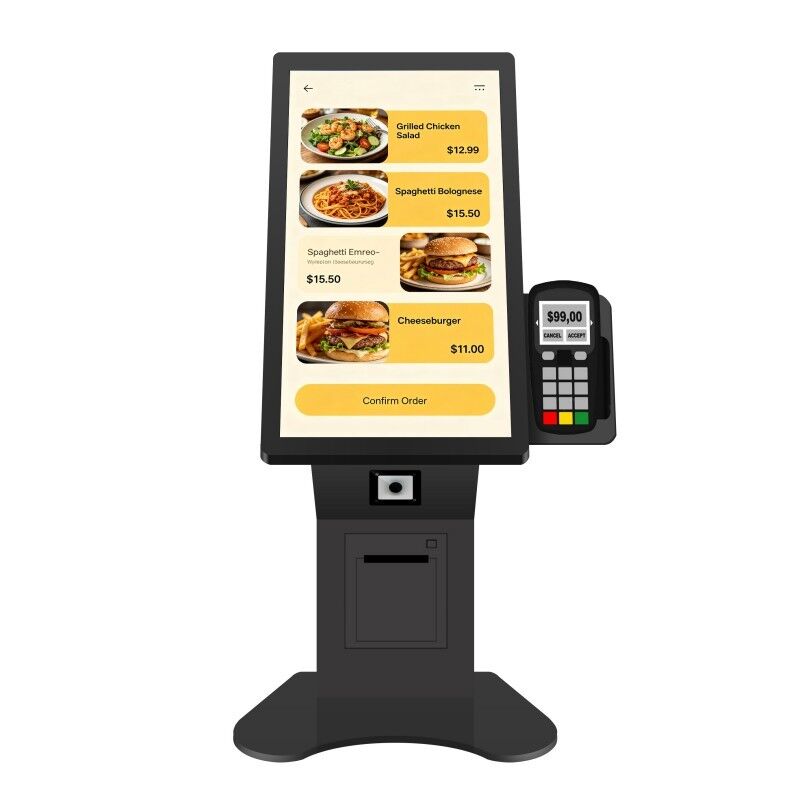

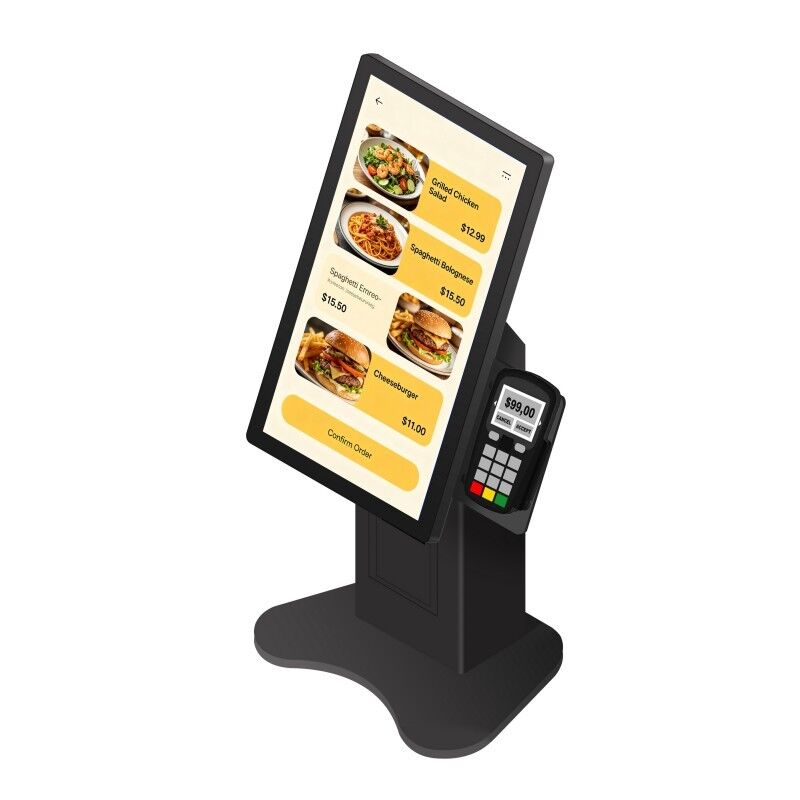

21.5" Standing Payment Kiosk Self Service Ordering Machine With Barcode Scanner and Printer



With increasingly compact store spaces and ever-growing demands for service efficiency, traditional large floor-standing equipment is no longer always the optimal choice. Especially in settings like coffee shops, light catering establishments, and milk tea shops, more flexible and smaller-footprint devices are becoming the trend. This 21.5-inch black-based tabletop ordering machine with integrated lighting is a highly efficient solution tailored for these high-frequency, small-space environments.


Compared to floor-standing devices, the biggest advantage of tabletop ordering machines is their flexible deployment. They can be placed directly at the cashier, bar, or waiting area without additional installation, occupying minimal space while quickly establishing a complete self-service ordering process. This "place and use" characteristic makes it ideal for rapid store upgrades or temporary expansions.


21.5-inch black desktop ordering machine
LCD Panel Parameters Screen Size 21.5 inch
Display area 476.5(H) X 268(V)mm
Aspect Ratio  16:9
LCD Type a-Si TFT-LCD
Max Resolution 1920 X 1080
Display color 16.7M , 72% NTSC
Brightness 350 cd/㎡
Contrast Ratio  3000:1
Viewing angle(up/down/left/right) 89/89/89/89 (Typ.)(CR≥10)
Response Time 20ms
LCD Panel Life(hrs) 60,000(hrs)
Field Frequency  60Hz
PCAP  Touchscreen Panel Parameters Touch style Projected Capacitive Touch screen
Touch points 10 points
Cover Glass Physical toughened Morse magnitude 7 explosion-proof
Anti-microbial protection and Shatterproof Protection
Optically bonded 3mm glass for low parallax
The glass transmittance >88%(Higher transmittance depends on the glass surface treatment technology, eg AR/AG) >88%
Response speed < 6ms
Accuracy of touch More than 90% of the touch area ±2mm
Touch ways Fingers, touch pen
Output format The coordinate output
Clicks time Unlimited
The smallest touch size 5mm
Long resistance Yes available
Touch Interfaces USB
Operating temperature & Humidity below10℃ ~ +50℃, ≤ 85%RH
Storage temperature & Humidity below20℃ ~ +60℃, ≤ 90%RH
        Mini PC Parameters          (Fan-less Industrial PC) CPU Intel Celeron J1900
RAM 8GB
SSD 64GB
WIFI 150Mbps 802.11n wifi integate
Network port RJ45, 10M/100M Adaptive Ethernet
Interface 2 * RJ45 GB Ethernet
2 * RS232 Serial Port
operating system Win10 or win11 optional
Onboard interface HDMI input 1
VGA input 1
DVI input 1
USB Type B or Any USB Type optional 1
Parts(Built-in) QR/Barcode Reader Can recognize 1D barcode and 2D barcode
Receipt Printer 80mm Thermal printer with cutter
Power Power supply AC 100V~240V, 50/60Hz
The Max power loss ≤ 45w
Standby power loss < 1W
Features Operating temperature  0℃ ~ 50℃
Storage temperature  below10℃ ~ +60℃
Accessories The length of Power Cable 1.5m
The length of HDMI Cable 2m
The length of USB-A to USB-B Cable 1.5m
Versatile Mounting Solution Wall Mounted with walll mount bracket
Stand Holder(Optional) Movable, can be with wheels on the base, height is adjustable
Package size Machine body size Customized
Net weight Customized
Unit Package size  Approx. 950(H) × 520(W) × 400(D) mm
The Gross weight of Unit Package  Approx. 15 – 22 kg


From a design perspective, the device features a black base and a simple screen structure, giving it a more business-like and technological feel. The LED light strip at the bottom not only enhances the device's visibility but also allows for customized lighting colors to enhance the store's atmosphere. Compared to the monotonous appearance of traditional equipment, this detailed design is more likely to attract customers to use the device.


In terms of core user experience, the 21.5-inch high-definition touchscreen provides ample display space, making the menu presentation richer and more intuitive. Users can quickly browse products and complete selections and orders by swiping and clicking. The portrait-oriented interface design conforms to user habits, allowing even first-time customers to complete operations quickly, significantly reducing the learning curve.


Functionally, this desktop ordering machine also boasts a complete business loop capability. It supports integrated ordering, payment, and order processing, and can integrate multiple payment methods such as QR code payment and bank card payment. Some configurations also support external or built-in printing devices to output receipts, meeting the operational needs of different stores.


21.5" Standing Payment Kiosk Self Service Ordering Machine With Barcode Scanner and Printer 0


Regarding the system, the device supports mainstream operating platforms and has excellent compatibility. Merchants can integrate it with their own business systems to achieve functions such as menu management, order synchronization, and data statistics. Through the backend system, product information or prices can be adjusted at any time, making operations more flexible and efficient.


Furthermore, the device also has advantages in terms of expandability. A QR code scanning module, member identification, or wireless communication function can be added as needed to realize more interactive or marketing scenarios. For example, in a membership system, customers can log in by scanning a QR code to receive exclusive offers, thereby increasing repeat purchase rates and user loyalty.


In practical applications, tabletop ordering kiosks not only improve ordering efficiency but also optimize store traffic flow. Customers can place orders at different locations without having to queue, thus alleviating peak-hour pressure. At the same time, through interface recommendations and displaying combo meals, they can effectively promote additional consumption and increase overall revenue.


If you would like to get the specification about above product, or you hope to discuss your requirements or need any additional information on our this product , then please do not hesitate to send us a inquiry and contact our sales team now.
