55 Inch Frameless Oled OLED Single-sided Suspended Transparent OLED Display

55 Inch Frameless Oled OLED Single-sided Suspended Transparent OLED Display

55 inch transparent OLED display

frameless suspended OLED screen

single-sided transparent OLED panel

Luogo di origine:

Guangdong, Cina

Marca:

ZXTLCD

Certificazione:

CE/Rohs/FCC

Numero di modello:

ZXTLCD-OLED-55DD

Contattici
Richieda una citazione
Dettagli del prodotto
Dimensioni dello schermo:
55 pollici
Tipo di retroilluminazione:
OLED autoluminoso
Risoluzione:
1920*1080
Frequenza di aggiornamento:
120Hz
Trasparenza del pannello:
43%
Colori standard:
1.07B 10 bit
Colore aspetto:
Bianco/Nero/Personalizzazione
Luminosità:
400nits (centro 1 punto.tip.)
Rapporto di contrasto:
8 ms
Angolo di visione:
Minimo 60/60/60/60
Sistema audio:
10 altoparlanti WX 2 integrati
Wi-Fi integrato:
Wi-Fi integrato 802.11n 150Mbps
sistema operativo:
Android o Windows opzionale
Tipo di touchscreen:
Touch screen capacitivo proiettato
Punti di contatto:
10 punti
processore:
Processore Intel I9-14900KF di quattordicesima generazione
RAM:
16GB
SSD:
512 GB
Scheda grafica discreta:
GIGABYTE 4070 da 12 GB
Tensione in ingresso:
CA 100~240 V, 50 Hz-60 Hz
Interfaccia integrata:
1 RJ45, 2 HDMI, 4 USB 2.0
Protipo:
Desktop/Da pavimento/Interattivo (opzionale)
Evidenziare:

55 inch transparent OLED display

,

frameless suspended OLED screen

,

single-sided transparent OLED panel

Termini di trasporto & di pagamento
Quantità di ordine minimo
1
Prezzo
Negoziabile
Imballaggi particolari
cassa di legno, cartone, flight case sono opzionali
Tempi di consegna
3-5 giorni lavorativi
Termini di pagamento
L/C,T/T,MoneyGram,Western Union
Capacità di alimentazione
2000 pezzi al mese
Descrizione di prodotto
55 Inch Frameless Oled OLED Single-sided Suspended Transparent OLED Display

Transparent OLED Display — Ceiling-Mounted Model


A transparent OLED display that blends seamlessly into modern living spaces, offering a unique visual perspective that defies your imagination!

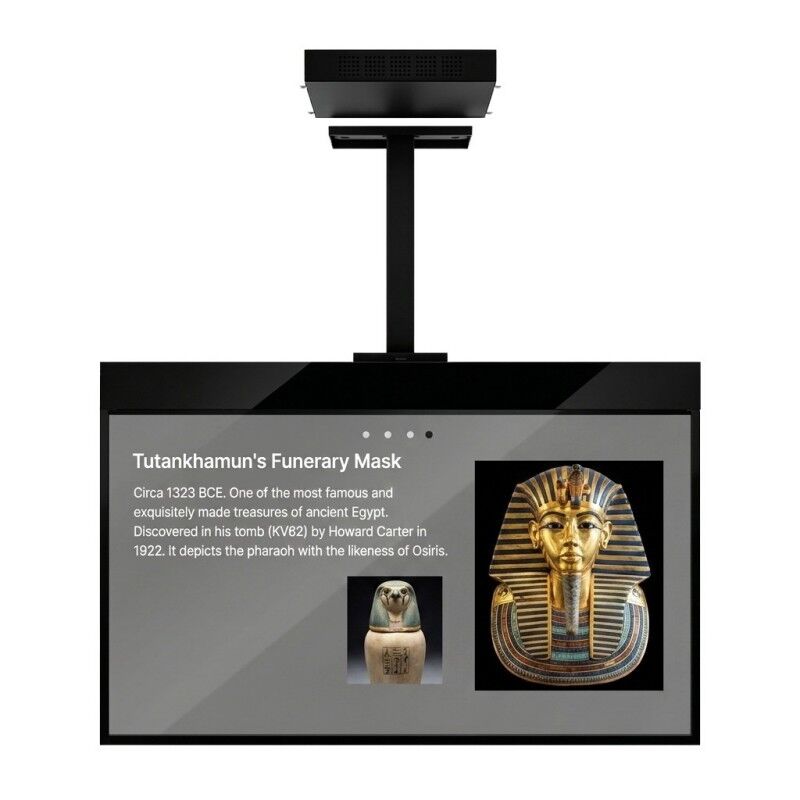

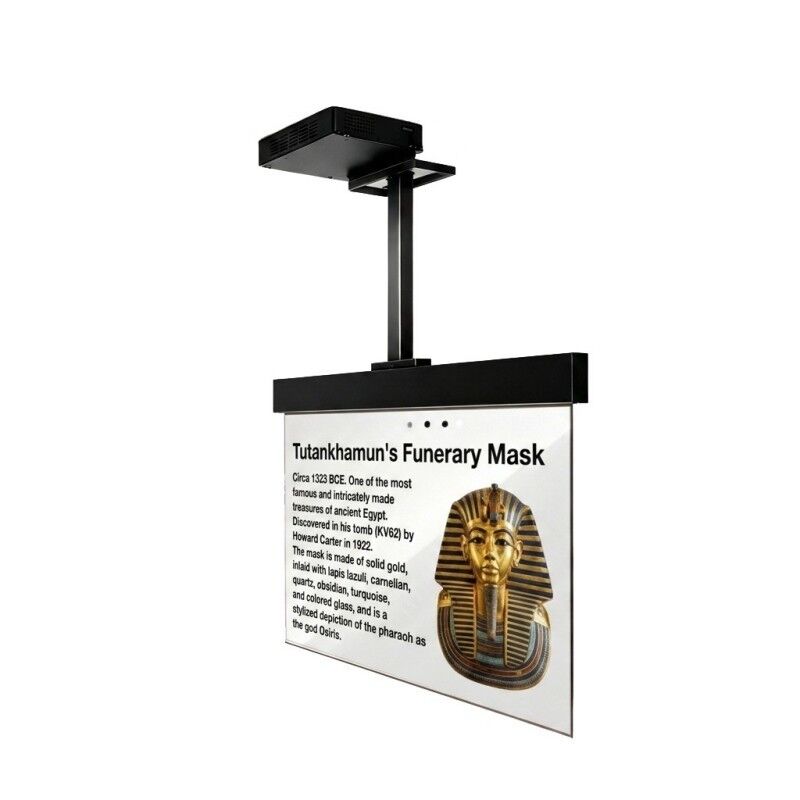

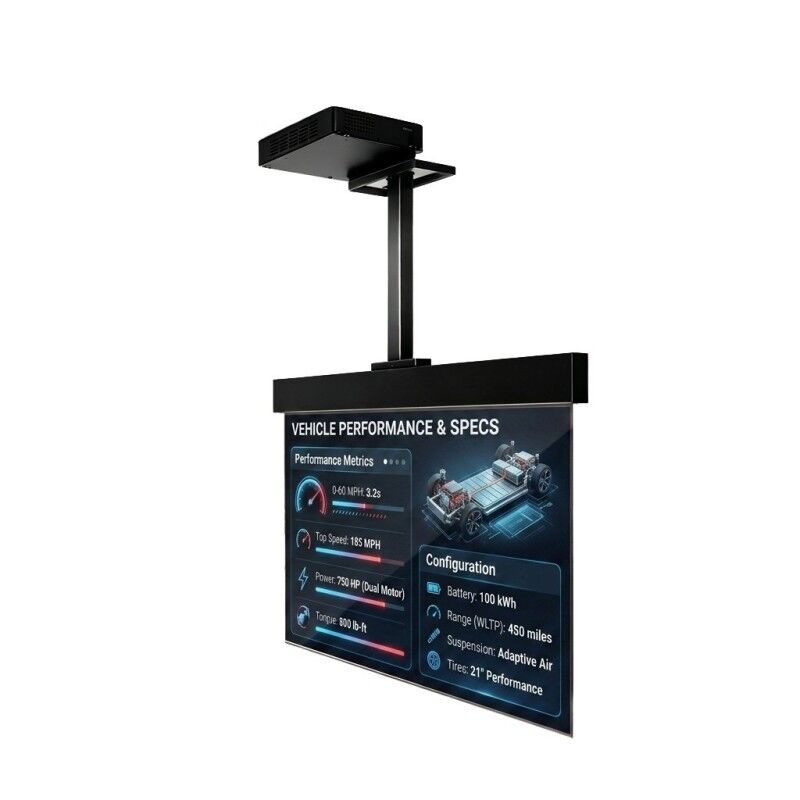

Ceiling-Mounted Installation


Designed for ceiling suspension, this installation method maximizes space efficiency and is ideally suited for environments such as art galleries, cultural museums, retail window displays, and more.


No Backlight Required: Self-Emitting Technology


The transparent OLED display breaks the mold of traditional display formats, delivering superior transparency and image quality. Unlike transparent LCDs—which require a backlight—this OLED screen is self-emissive. Boasting a transparency level of nearly 45%, it renders images with exceptional clarity and fine detail.


Self-Emitting OLED: Delivering Deeper, More Vivid Imagery


While LCD technology relies on external light sources and multiple optical layers to generate color, OLED operates differently. Each individual pixel on an OLED screen features independent light control; as a self-emissive technology, it requires no external backlight, thereby eliminating light leakage. This results in purer, deeper, and more refined image quality.


Slim and Lightweight Design: Unlocking Endless Possibilities


By eliminating the need for a backlight, transparent OLED technology enables a significantly thinner and lighter design. The OLED display panel itself measures a mere 1mm at its thinnest point. Transparent OLED technology overcomes the design limitations inherent in traditional displays, opening up a wealth of new possibilities across diverse sectors—including transportation, commercial exhibitions, architecture, and beyond.


Transparent OLED — 55-inch Ceiling-Mounted Model(ZXTLCD-OLED-55DD)
Parameters






    Panel






Size 55 inches
Type OLED panel technology
Light transmittance 43%
Dynamic contrast ratio 200000:1
Aspect ratio 16:9
Resolution 1920*1080
Viewing angle  R/L 120(min) U/D 120(min)
Brightness 600/200  cd/m²(Center  1point,Typ)
Number of pixels(HxVx3) 6220800
Color gamut 90%
Lifespan (typical value) 30,000 hours
Operating time 18 hours/7 days (dynamic images only)
Orientation Landscape orientation
Refresh rate 120Hz
Interfaces Input HDM IInterfaces*1
USB Interfaces*1
Function Touch control None/Capacitive (optional)
Features Transparent display, pixel-level self-controlling backlight, ultra-fast response
Power/Environment Power supply Operating power supply: AC100-240V, 50/60Hz
Environment Temperature: 0-40°C, Humidity: 10%-80%
Dimension Display size 1209.6×680.4mm
Panel size 1221.5*699.35(mm)
Overall dimensions 1274.6*1408(mm)
Power Consumption Typical value 190W
DPM 3W
Power off 0.5W
Packaging Stand Main unit box, cover plate, base
Accessories Remote control, power cord

55 Inch Frameless Oled OLED Single-sided Suspended Transparent OLED Display 0

55 Inch Frameless Oled OLED Single-sided Suspended Transparent OLED Display 1

55 Inch Frameless Oled OLED Single-sided Suspended Transparent OLED Display 2

If you would like to get the specification about above product, or you hope to discuss your requirements or need any additional information on our this product , then please do not hesitate to send us a inquiry and contact our sales team now.
