32 Inch Restaurants Pos Hardware System Self Service Cash Register With Printer

32 Inch Restaurants Pos Hardware System Self Service Cash Register With Printer

32 inch self service cash register

restaurant POS hardware system

self ordering kiosk with printer

Lieu d'origine:

Guangdong, Chine

Nom de marque:

ZXTLCD

Certification:

CE/Rohs/FCC

Numéro de modèle:

ZXTLCD-SOK320V002

Contactez-nous
Demandez une citation
Détails de produit
Taille de l'écran:
32 pouces
type de panneau:
BOE Original A+ Grade IPS
Luminosité:
400 cd/㎡
Résolution:
1920X1080
Angle de vue:
178°/178° (H/V)
Consommation d'énergie:
80W
Température de fonctionnement:
0°C à 50°C
Matériau du meuble:
Boitier métal + Verre
Écran tactile:
Écran tactile capacitif à 10 points
Lecteur/scanner/lecteur QR NFC:
Prise en charge, intégrée
Imprimante thermique 80 mm:
Prise en charge, intégrée
Scanner de passeport:
Facultatif
Installation de terminal de point de vente:
Réserver de l'espace
Alimentation:
C.A. 100 ~ 240 V, 50 Hz-60 Hz
Application:
Hôtellerie, hôtellerie et restauration
Prototype:
Bureau/au sol/monté au mur (en option)
Souligner:
kiosque interactif de commande en libre-service, kiosque de commande en libre-service interactif, ki
Mettre en évidence:

32 inch self service cash register

,

restaurant POS hardware system

,

self ordering kiosk with printer

Conditions de paiement et d'expédition
Quantité de commande min
1
Prix
Négociable
Détails d'emballage
caisse en bois, carton, flight cases sont facultatifs
Délai de livraison
3-5 jours ouvrables
Conditions de paiement
LC, T/T, Western Union, MoneyGram
Capacité d'approvisionnement
2000 pièces par mois
Description de produit

32 Inch Restaurants Pos Hardware System Self Service Cash Register With Printer



32-inch Vertical Self-Service Cash Register: Reshaping Efficiency and Experience in Smart Stores


Against the backdrop of continuous upgrades in digital retail and smart catering, traditional checkout models are gradually being replaced by efficient and intelligent self-service terminals. Faced with peak-hour queues, rising labor costs, and service efficiency bottlenecks, businesses urgently need a stable and scalable solution.


This 32-inch vertical self-service cash register, as a new generation of 32-inch self-service cash register, integrates ordering, payment, printing, and data management functions, providing restaurants, supermarkets, and commercial spaces with a one-stop intelligent service terminal, helping stores achieve true digital transformation.

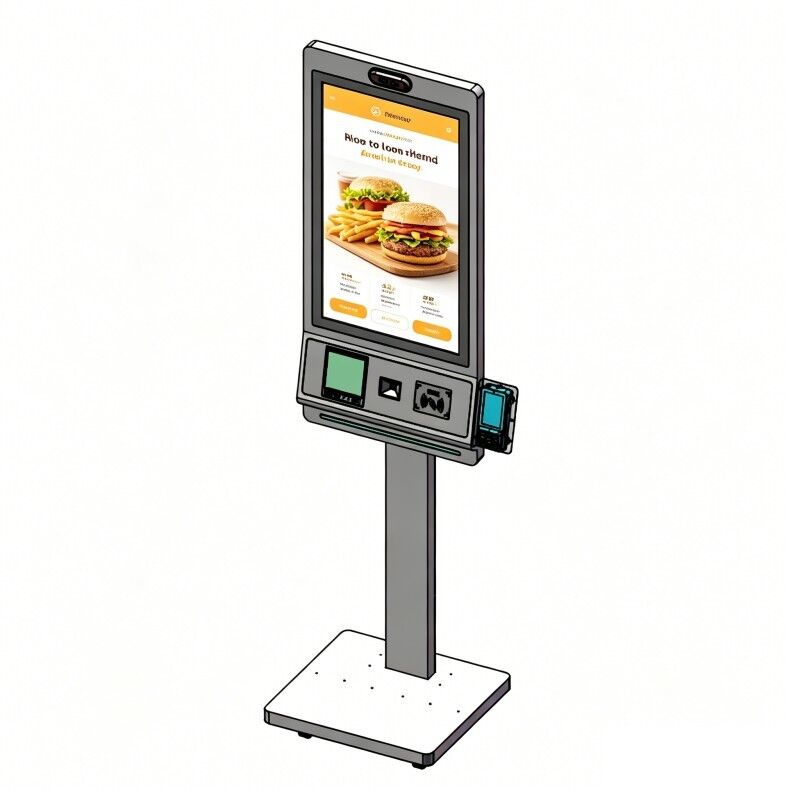

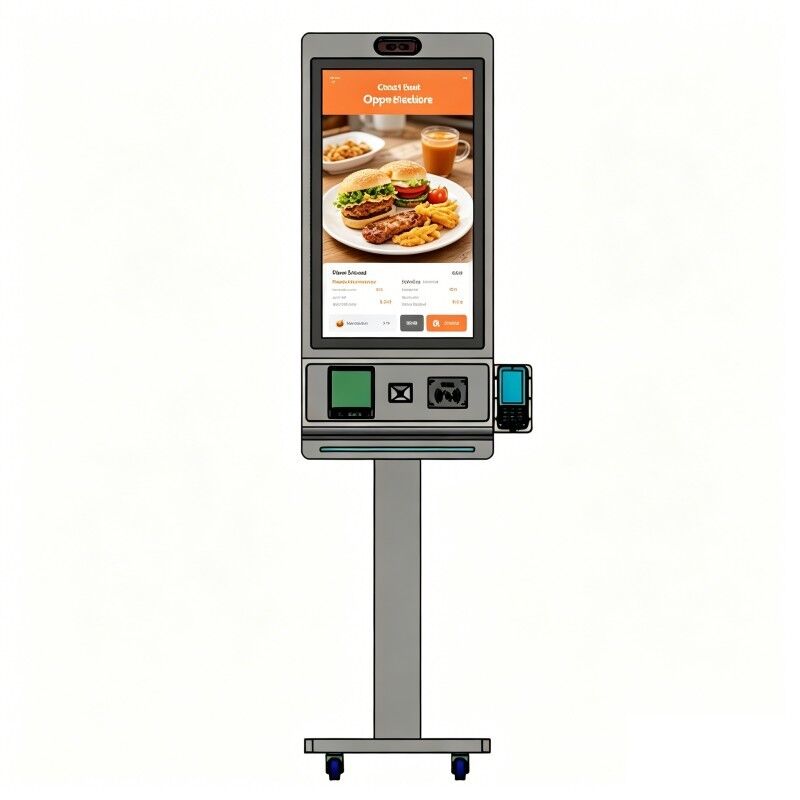

32-inch Vertical self-service machine
LCD Panel Parameters Screen Size 32 inch
Display area 698(H) X 391.8(V)mm
Aspect Ratio  16:9
LCD Type a-Si TFT-LCD
Max Resolution 1920 X 1080
Display color 16.7M , 72% NTSC
Brightness 400 cd/
Contrast Ratio  1200 :1
Viewing angle(up/down/left/right) 89/89/89/89 (Typ.)(CR≥10)
Response Time 20ms
LCD Panel Life(hrs) 60,000(hrs)
Field Frequency  60Hz
PCAP  Touchscreen Panel Parameters Touch style Projected Capacitive Touch screen
Touch points 10 points
Cover Glass Physical toughened Morse magnitude 7 explosion-proof
Anti-microbial protection and Shatterproof Protection
Optically bonded 3mm glass for low parallax
The glass transmittance >88%(Higher transmittance depends on the glass surface treatment technology, eg AR/AG) >88%
Response speed < 6ms
Accuracy of touch More than 90% of the touch area ±2mm
Touch ways Fingers, touch pen
Output format The coordinate output
Clicks time Unlimited
The smallest touch size 5mm
Long resistance Yes available
Touch Interfaces USB
Operating temperature & Humidity below10℃ ~ +50℃, ≤ 85%RH
Storage temperature & Humidity below20℃ ~ +60℃, ≤ 90%RH
Mini PC Parameters (Fan-less Industrial PC) CPU Intel Celeron J1900
RAM 8GB
SSD 64GB
WIFI 150Mbps 802.11n wifi integate
Network port RJ45, 10M/100M Adaptive Ethernet
Interface 2 * RJ45 GB Ethernet
2 * RS232 Serial Port
operating system Win10 or win11 optional
Onboard interface HDMI input 1
VGA input 1
DVI input 1
USB Type B or Any USB Type optional 1
Parts(Built-in) QR/Barcode Reader Can recognize 1D barcode and 2D barcode
Receipt Printer 80mm Thermal printer with cutter
Power Power supply AC 100V~240V, 50/60Hz
The Max power loss ≤ 45w
Standby power loss < 1W
Features Operating temperature  0℃ ~ 50℃
Storage temperature  below10℃ ~ +60℃
Accessories The length of Power Cable 1.5m
The length of HDMI Cable 2m
The length of USB-A to USB-B Cable 1.5m

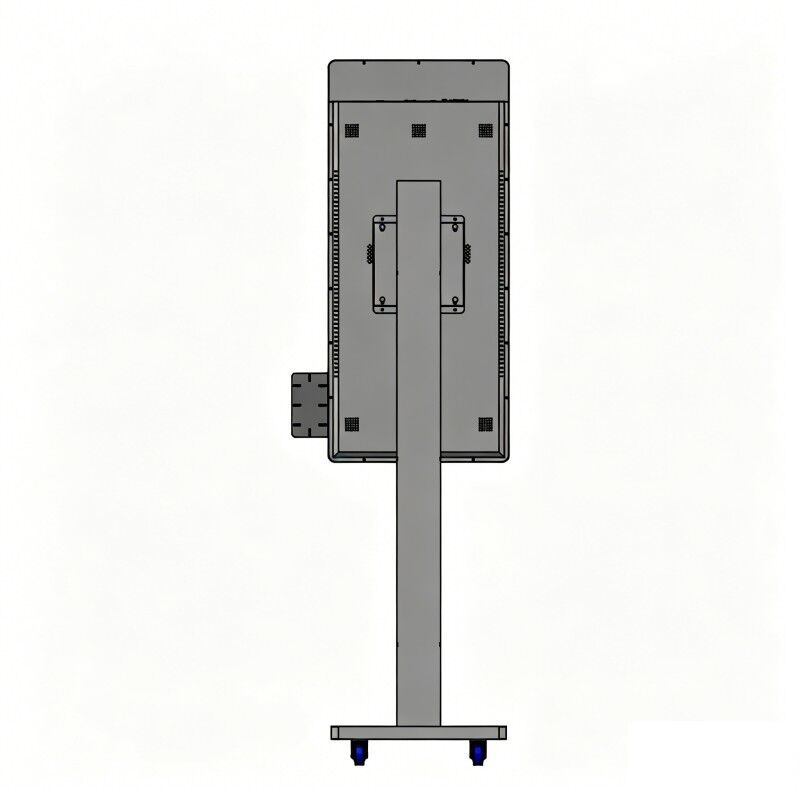

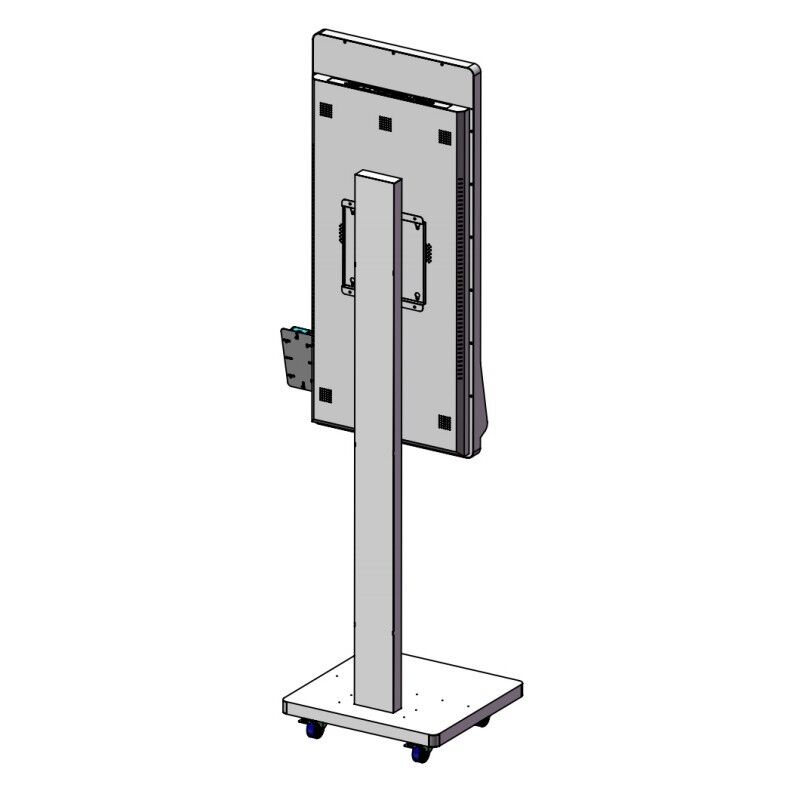

Versatile Mounting Solution Wall Mounted with walll mount bracket
Stand Holder(Optional) Movable, can be with wheels on the base, height is adjustable
Package size Machine body size Customized
Net weight Customized
Unit Package size  650(H) ×530(W) × 2000(D) mm
The Gross weight of Unit Package  Approx. 25 kg –35 kg


1. 32-inch High-Definition Large Screen, Enhancing User Interaction


The device features a 32-inch full HD touchscreen display supporting 10-point capacitive touch, providing clear visuals and smooth operation, allowing customers to easily complete the ordering and payment process.


The large screen not only improves the visual experience but is also better suited for displaying menus, promotional information, and brand content, enhancing user engagement.


2. Integrated POS System, Enabling Full-Process Self-Service


As an integrated 32-inch Self-Service Cash Register, this device has a built-in complete POS system that supports:


Product selection and order management


Multiple payment methods (QR code/card/NFC)


Automatic receipt printing


Real-time order data synchronization


Effectively replacing traditional cash registers, achieving an integrated "ordering + payment + ticketing" process.


3. Modular Design to Meet Diverse Business Needs


The equipment adopts a modular structure design, allowing for flexible expansion with various peripherals, including:


QR code/barcode scanner


Thermal printer (58mm/80mm)


Camera and facial recognition


NFC card reader


Enterprises can freely combine and configure these features according to different scenarios to achieve personalized deployment.


4. Industrial-Grade Body, Supporting 24/7 Stable Operation


The entire unit adopts a high-strength metal structure and industrial-grade design, possessing excellent durability and stability, and can operate for extended periods in high-traffic environments.


At the same time, optimized internal heat dissipation and wiring structure ensure system stability, making it suitable for continuous operation scenarios such as restaurants, shopping malls, and airports.


32 Inch Restaurants Pos Hardware System Self Service Cash Register With Printer 0


32 Inch Restaurants Pos Hardware System Self Service Cash Register With Printer 1


This 32-inch vertical self-service checkout and ordering machine, with its large-screen interaction, powerful scalability, and stable industrial design, has become a core piece of equipment for smart store upgrades.


As a high-performance 32-inch self-service cash register, it not only improves service efficiency but also drives the transformation of business models towards automation and digitalization.


In the future, with the continued development of unmanned retail and smart catering, these self-service terminals will become standard infrastructure in various business scenarios, bringing sustained growth momentum to enterprises.


If you would like to get the specification about above product, or you hope to discuss your requirements or need any additional information on our this product , then please do not hesitate to send us a inquiry and contact our sales team now.
