Name: 55 Inch Custom Shell Transparent Oled Display High Transparency Vertical 2x2 splicing model See Through Touchscreen
Brand: Shenzhen ZXT LCD Technology Co.,Ltd
SKU: ZXTLCD-OLED-055PS004
Availability: InStock

Maison > produits > OLED transparents >

55 Inch Custom Shell Transparent Oled Display High Transparency Vertical 2x2 splicing model See Through Touchscreen

55 inch transparent OLED display

custom shell transparent touchscreen

vertical 2x2 splicing OLED

Lieu d'origine:

Guangdong, Chine

Nom de marque:

ZXTLCD

Certification:

CE/Rohs/FCC

Numéro de modèle:

ZXTLCD-OLED-055PS004

Contactez-nous

Demandez une citation

55 Inch Custom Shell Transparent Oled Display High Transparency Vertical 2x2 splicing model See Through Touchscreen

Détails de produit

Taille de l'écran:

55 pouces

Type de rétroéclairage:

OLED auto-lumineux

Résolution:

Meubles de salon

Taux de rafraîchissement:

120 Hz

Transparence du panneau:

43%

Couleurs standards:

1.07B 10 bits

Apparence Couleur:

Blanc/Noir/Personnalisation

Luminosité:

400nits (centre 1 point.typ.)

Rapport de contraste:

8 ms

Angle de vision:

Min 60/60/60/60

Système audio:

Haut-parleurs 10 WX 2 intégrés

Wi-Fi intégré:

Intégrateur Wi-Fi 802.11n 150 Mbps

Système d'exploitation:

Android ou Windows en option

Type d'écran tactile:

Écran tactile capacitif projeté

Points de contact:

10 points

Processeur:

Processeur Intel I9－14900KF de 14e génération

BÉLIER:

16 GB

SSD:

512 Go

Carte graphique discrète:

12 Go GIGABYTE 4070

Tension d'entrée:

C.A. 100 ~ 240 V, 50 Hz-60 Hz

Interface embarquée:

1 X RJ45, 2 X HDMI, 4 X USB2.0

Prototype:

Bureau/au sol/interactif (facultatif)

Mettre en évidence:

55 inch transparent OLED display

custom shell transparent touchscreen

vertical 2x2 splicing OLED

Conditions de paiement et d'expédition

Quantité de commande min

Prix

Négociable

Détails d'emballage

caisse en bois, carton, flight cases sont facultatifs

Délai de livraison

3-5 jours ouvrables

Conditions de paiement

LC, T/T, MoneyGram, Western Union

Capacité d'approvisionnement

2000 pièces par mois

Produits connexes

55-Inch Transparent OLED Screen with High-definition Resolution, Touch Functionality, and ultra Design Transparent Display

Obtenez le meilleur prix

A 55-inch transparent OLED mobile reception robot equipped with autonomous navigation, voice interaction, and facial recognition is suitable for reception scenarios.

Obtenez le meilleur prix

55 Inch Custom Shell Transparent Oled Display High Transparency Vertical 2x2 splicing model See Through Touchscreen

Obtenez le meilleur prix

55 Inch Vertical 2x1 splicing model Film Video Wall Ultra Thin Product launch event transparent oled screen

Obtenez le meilleur prix

Contactez-nous

Contact maintenant

Description de produit

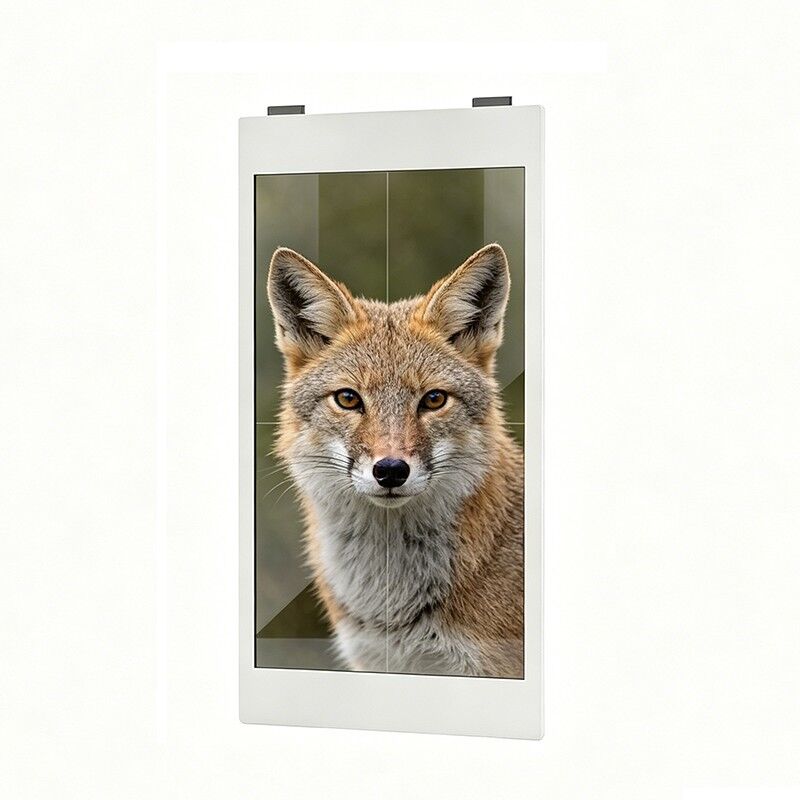

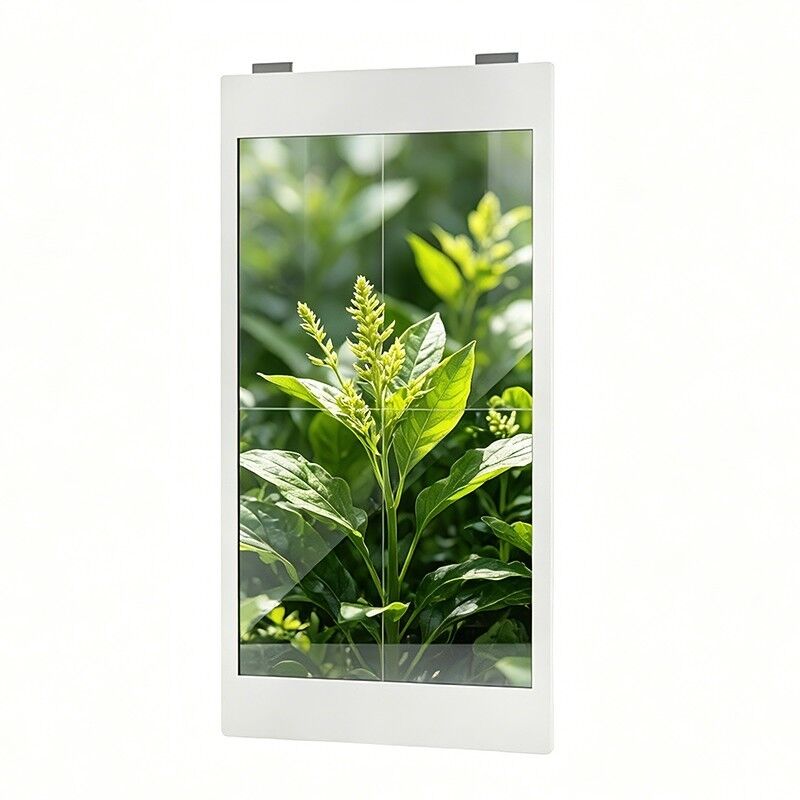

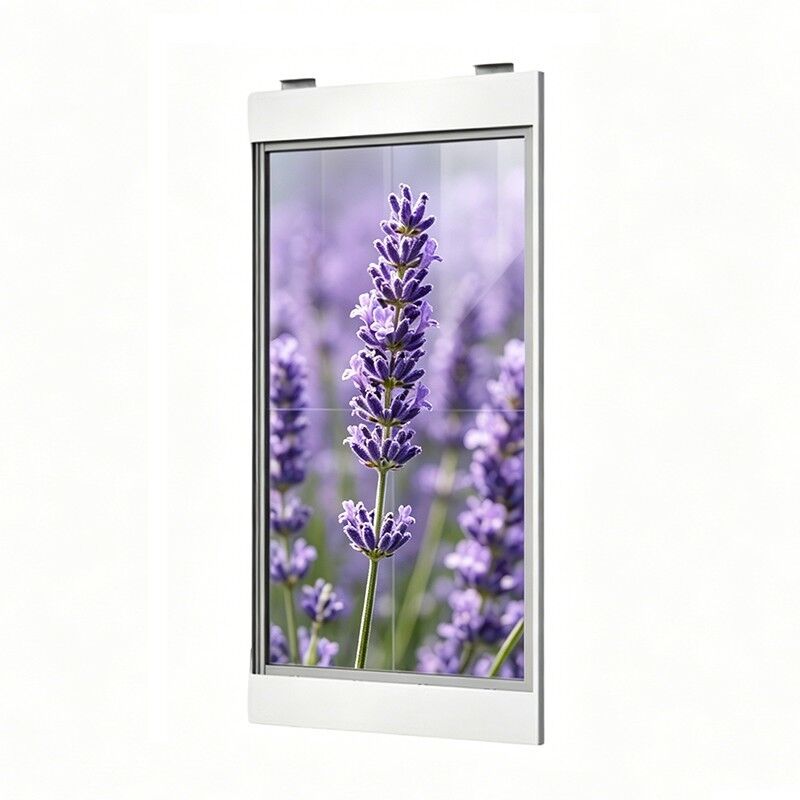

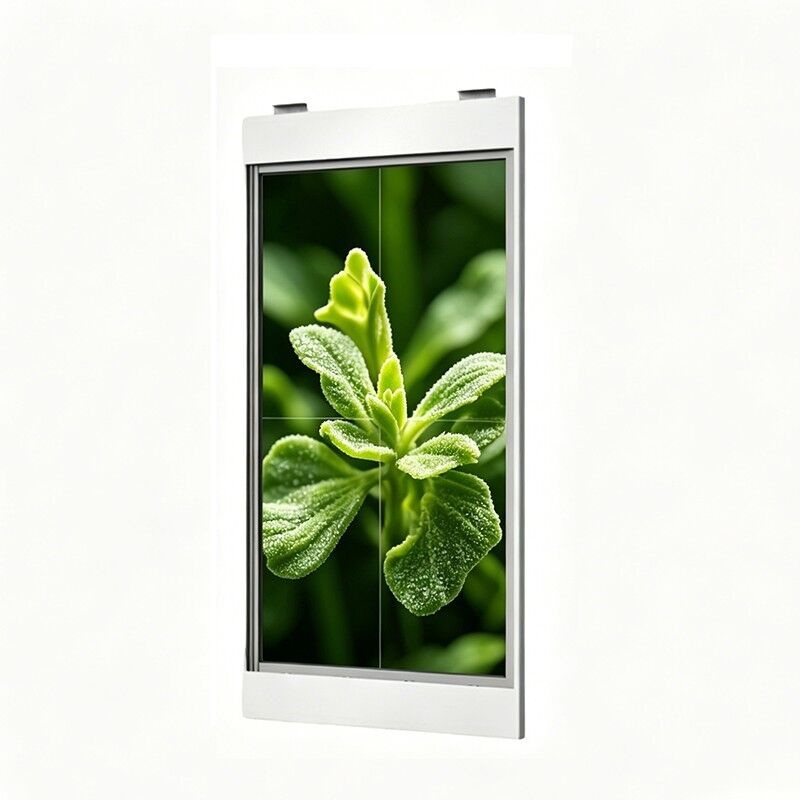

55 Inch Custom Shell Transparent Oled Display High Transparency Vertical 2x2 splicing model See Through Touchscreen

Transparent screen, high-definition display, flexible splicing, unlimited expansion

The transparent splicing screen features a slim OLED module structure, significantly improving the overall architecture of traditional LCD displays.

It breaks through the traditional display playback form and broadens the application range of traditional displays.

Sponcing method: 2×2 splicing, that is, four 55-inch OLED transparent screens are spliced together in a 2x2 arrangement.

Sponcing effect: Through precise splicing technology, a seamless or near-seamless splicing effect is achieved, making the entire screen present a complete and continuous picture.

Installation and debugging: Gongxian Shengshi Technology provides installation and debugging services to ensure that the spliced screen can operate normally and present the best picture effect.

Transparent OLED Video Wall — Horizontal 2x2(ZXTLCD-OLED-055PS004)
Parameters
Panel	Size	55 inches
	Type	OLED panel technology
	Light transmittance	43%
	Dynamic contrast ratio	200000:1
	Aspect ratio	9:16
	Resolution	2160x3840
	Viewing angle	R/L 120(min) U/D 120(min)
	Brightness	600/200 cd/m² (Center 1point,typ)
	Number of pixels(HxVx3)	6220800
	Color gamut	90%
	Lifespan (typical value)	30,000 hours
	Operating time	18 hours/7 days (dynamic images only)
	Orientation	vertical orientation
	Refresh rate	120Hz
Interfaces	Input	HDMI Interfaces*2
		USB Interfaces*1
		Ethernet Port x1
	Output	Ethernet Port x1
Bezel Specification	Physical Seam	11.8mm
Function	Touch control	None/Capacitive (optional)
	Features	Transparent display, pixel-level self-controlling backlight, ultra-fast response
Power/Environment	Power supply	Operating power supply: AC100-240V, 50/60Hz
	Environment	Temperature: 0-40°C, Humidity: 10%-80%
Dimension	Display size	1378.1*2440(mm)
	Panel size	1378.1*2440(mm)
	Overall dimensions	1550*3070(mm)
Power Consumption	Typical value	760W
	DPM	3W
	Power off	0.5W
Packaging	Stand	Main unit box, cover plate, base
	Accessories	Remote control, power cord

55 Inch Custom Shell Transparent Oled Display High Transparency Vertical 2x2 splicing model See Through Touchscreen 0

55 Inch Custom Shell Transparent Oled Display High Transparency Vertical 2x2 splicing model See Through Touchscreen 1

If you would like to get the specification about above product, or you hope to discuss your requirements or need any additional information on our this product , then please do not hesitate to send us a inquiry and contact our sales team now.
