Place of Origin:
Guangdong, China
Brand Name:
ZXTLCD
Certification:
CE/Rohs/FCC
Model Number:
ZXTLCD-OLED300VL

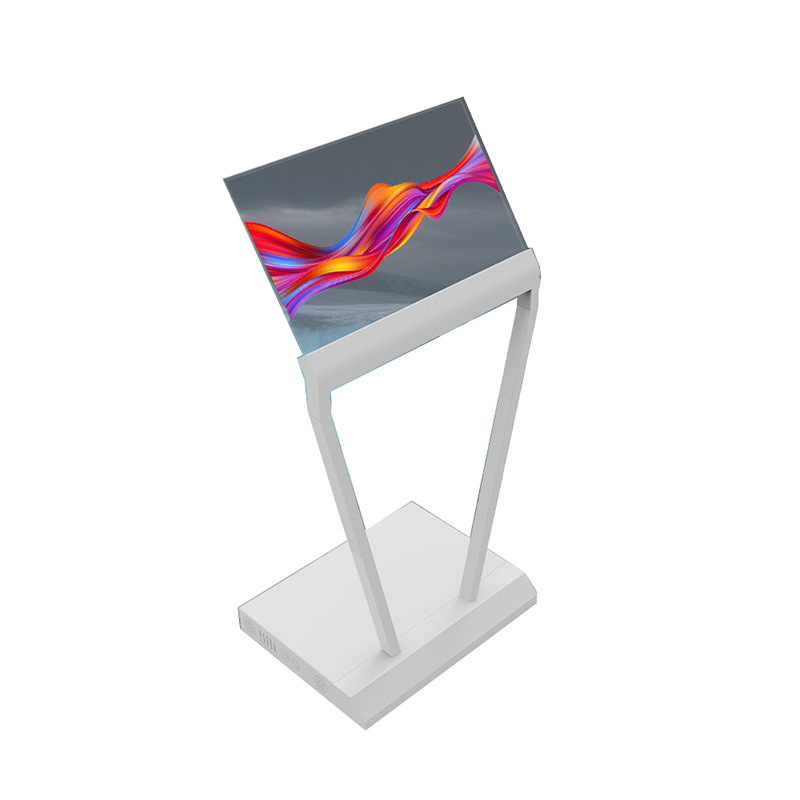

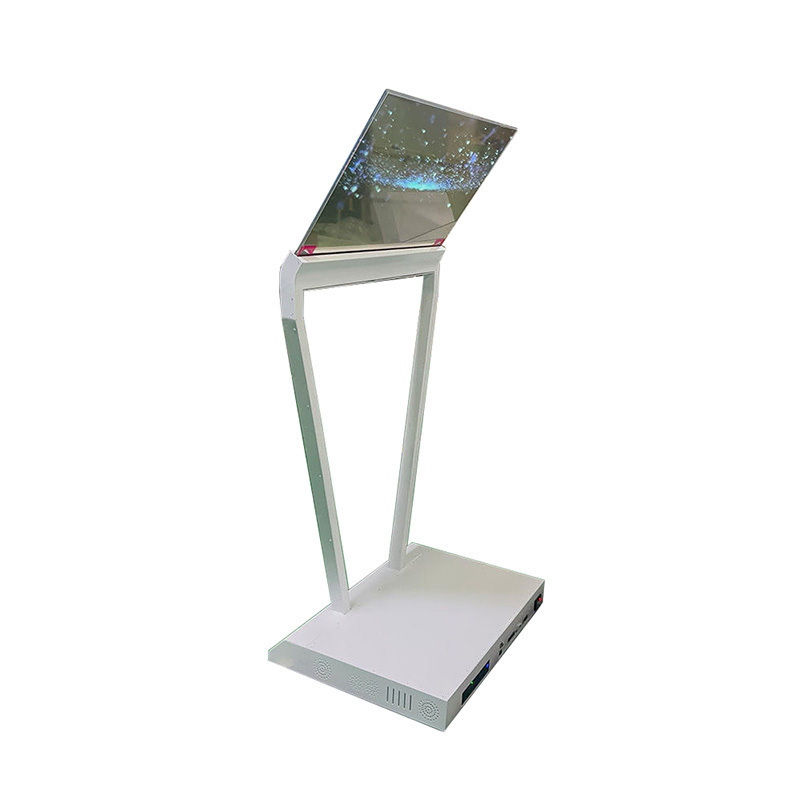

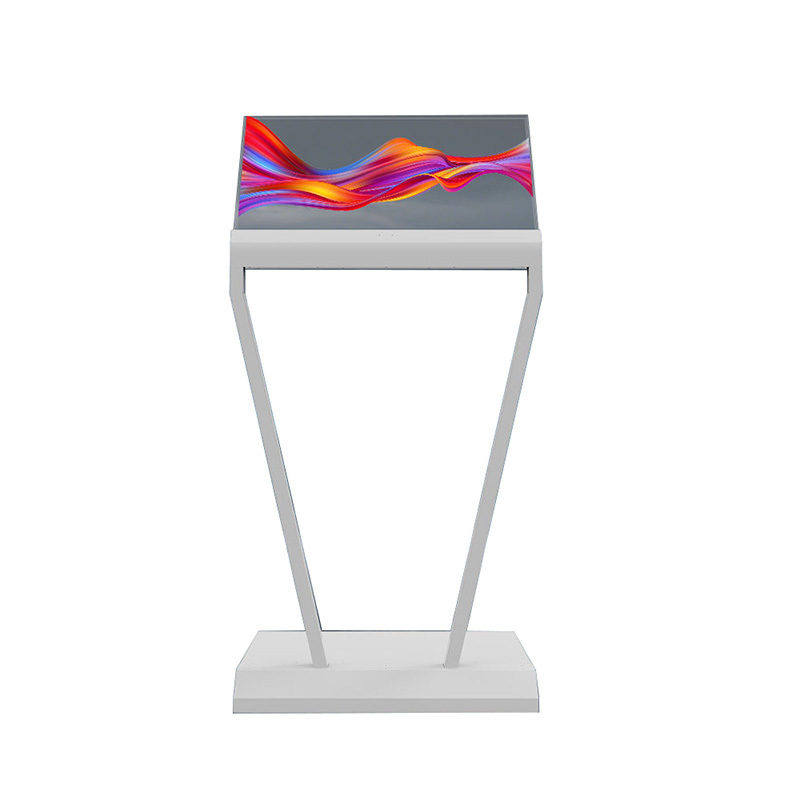

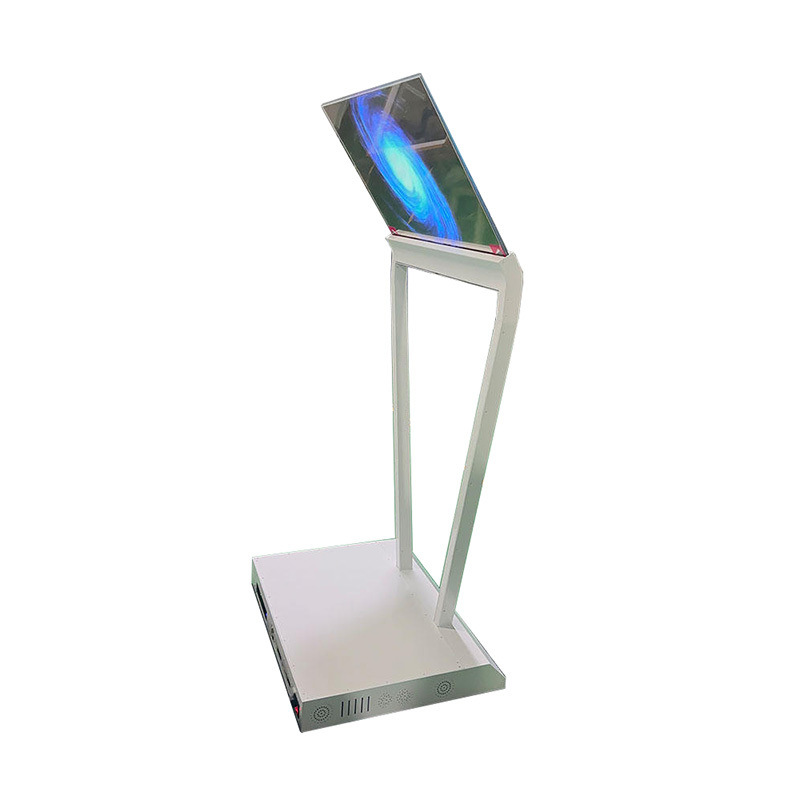

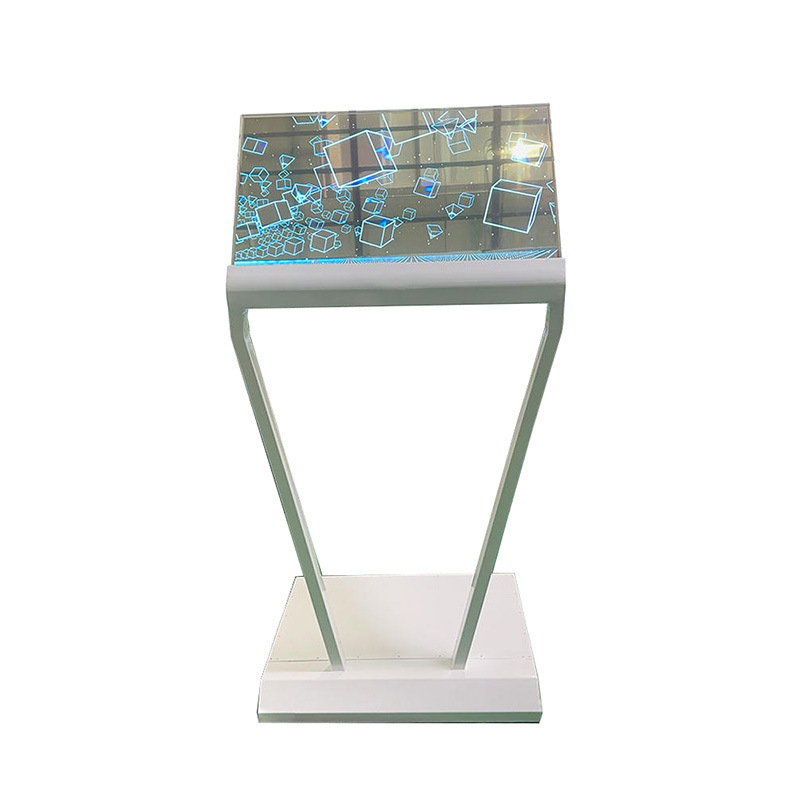

The role of 30-Inch All-Glass Transparent OLED Touch Kiosk is narrow and practical: it helps a architect or project integrator place information in front of a real environment without turning that environment into a black rectangle. The planned angle is All-Glass Countertop Kiosk, so the product should be evaluated through the way visitors approach, pause, read, touch, and move on. Used correctly, 30-Inch Transparent OLED Kiosk supports the physical scene instead of competing with it.
A site team usually considers 30-Inch All-Glass Transparent OLED Touch Kiosk when it needs self-service consultation, guided product discovery, lobby explanation, and visitor-facing information points. The 30-inch format changes the brief because the viewer compares the media layer with a real object, route, fixture, or interior.
For All-Glass Countertop Kiosk, the first mockup should show the background and the content together, not as separate approvals. That discipline helps the architect or project integrator avoid a common mistake: buying a transparent display before deciding what the transparency is meant to reveal.
OLED is not selected only for novelty. It is selected because the display can carry digital content while preserving a see-through relationship with the object or space behind it. In a 30-inch application, the difference becomes clear at close range: dark areas can recede, bright graphics can carry the message, and the physical environment remains part of the composition.
That makes the technology useful for projects where brand atmosphere, product visibility, and digital storytelling all have to share the same surface. For 30-Inch All-Glass Transparent OLED Touch Kiosk, that technical value should be judged through all-glass countertop kiosk, not as a generic transparent-screen effect.
|
display parameters |
||||
|
Panel size |
30 inches. |
Panel type |
OLED |
|
|
display area |
664.29Mm * 373.48mm |
external dimensions |
676.09Mm × 387.48mm × 1.6mm (width × height × thickness) |
|
|
transmittance |
43% |
viewing angle |
178 °, 178 ° |
|
|
static contrast |
100000:1 (Typ.) Transmission |
Dynamic Contrast |
200000:1 (Typ.) Transmission |
|
|
patchwork |
Unilateral 5.9mmm, bilateral 12mm, overall unilateral stitching 5.9/5 9/5.9/8.1 (left/right/top/bottom) |
screen scale |
16:9 |
|
|
brightness |
200-600 (nits) |
Best resolution |
1366*768 |
|
|
Screen life |
≥ 30000 hours |
power |
≤ 150W |
|
|
Display color |
10-Bit, 1.07B (1B = 1 billion) |
Speaker |
8Ω/5W * 2 |
|
|
screen gross weight |
Screen weight 1.04kg |
Gross weight of the whole machine |
to be determined |
|
|
environment |
Working temperature 1 ℃~ 45 ℃ |
working humidity |
30%~80% |
|
|
running time |
18 hours x 7 days |
Ambient height |
(Altitude) 0~ 5000m |
|
|
response time |
8ms |
working voltage |
100V-240VAC, 50/60Hz |
|
|
Fitting method |
frame sticker |
Fitting method (optional) |
Full fit |
|
|
Driver Board |
||||
|
input interface |
HDMI IN |
USB |
USB 2.0 |
|
|
DP |
DP IN |
weight |
0.4Kg |
|
|
Control signal IN |
RS232 serial port (RJ45) |
Control signal OUT |
RS232 serial port (RJ45) |
|
|
function |
With splicing function |
protect |
Anti-afterimage, anti-burn, repair function |
|
|
Touch screen parameters: capacitance optional |
||||
|
touch technology |
Capacitive touch technology |
positioning accuracy |
3Mm |
|
|
Installation method |
Built-in integrated |
writing method |
Finger ≥ 5mm |
|
|
touch points |
10 touch writing |
Writing screen medium |
5-8Mm tempered high transparency glass |
|
|
response speed |
≤ 5ms |
computer driven |
drive-free |
|
|
mode of communication |
USB |
service life |
≥ 60 million times |
|
|
PC configuration (optional) |
||||
|
main board |
Intel Core |
|||
|
CPU |
4th generation/6th generation/7th generation/8th generation/10th generation - Core i3/i5/i7 (optional) |
|||
|
Memory |
4G/8G/16G-DDR3 (optional) |
|||
|
Hard disk |
SSD120G/240G/480-HDD500G/1T/2T (optional) |
|||
|
nuclear display |
Intel HD Graphics 4000 |
|||
|
Backplane I/O |
1 × DC_IN power interface, 1 × HDMI interface, 1 × VGA interface, 2 × USB3.0 interface, 1 × LAN_RJ interface, 2 × USB2.0 interface, 1 × Mic (input), 1 × PHONE (output) |
|||
|
Operating System |
Win 7/Win 10 operating system |
|||
|
Android configuration (optional) |
||||
|
Main board model |
3568/3288/3588 |
|||
|
Memory |
2G/4G/8G optional |
|||
|
storage |
16G/32G/64G/128G optional |
|||
|
interface |
1 × USB2.0, 1 × USB3.0, 1 × HDMI_OUT, 1 × LAN_RJ, 1 × WIFI |
|||
|
Packing and packing list |
||||
|
Package size |
Honeycomb box: 74 * 22 * 45CM |
Air box:/ |
||
|
Weight information |
Bare metal weight: 31KG |
Packing weight (bare metal + honeycomb box): 41KG |
||
|
name |
With PC/Android |
|
||
|
Specifications |
quantity |
Remarks |
||
|
transparent display |
30 inch OLED transparent screen |
1 piece |
|
|
|
system |
Customized according to actual needs (built-in) |
1 set |
|
|
|
remote control |
Universal version (without battery) |
1 |
|
|
|
Power cord |
National standard 1.5 meters |
Article 1 |
|
|
|
HDMI extension cable Note ② |
optional |
Article 1 |
|
|
|
Touch the USB extension cable Note ② |
optional |
Article 1 |
|
|
|
HDMI signal cable Note ② |
optional |
Article 1 |
|
|
|
Warranty card certificate |
Chinese version |
1 sheet |
|
|
|
Note: HDMI extension cable, HDMI cable and touch USB extension cable are optional items. The final packing list is subject to the actual shipment of the customer. You can choose whether to configure the extension cable according to customer needs. Note that the selection will incur corresponding costs. Please confirm the price for shipment. |
||||
For 30-Inch All-Glass Transparent OLED Touch Kiosk, installation is a design coordination task rather than a late hardware step. The review should cover floor stability, lift or door movement, cable exit, controller location, and safe public placement.
Although the front view of a 30-inch transparent OLED may look light, the build still needs a path for power, signal, ventilation, and service. For All-Glass Countertop Kiosk the mounting method should protect the panel, keep the visible area clean, and allow a technician to reach the system without disturbing the surrounding display environment.
For 30-Inch All-Glass Transparent OLED Touch Kiosk, content should be planned as a living program, not a launch file. The playback method should support home screens, short decision trees, timed media loops, and remote updates for changing programs.
Media should be written with short lines, clear hierarchy, and enough open area for the see-through effect to survive. For 30-Inch Transparent OLED Kiosk, procurement should include questions about update frequency, file formats, remote access, approval rights, and who owns the final content after the installation team leaves.
The transparent effect of 30-Inch All-Glass Transparent OLED Touch Kiosk changes with reflections and background material. The result depends on atrium light, lobby reflections, viewing angle, and the distance between the visitor and the interface. Transparent OLED is usually most convincing indoors, yet every site has its own reflection pattern and background density.
A useful test for All-Glass Countertop Kiosk should include the intended content, the real approach distance, and the surrounding materials. If readability drops, the fix may be content contrast, lighting adjustment, or a better position rather than a different product.
Touch integration should be planned as a user path, not as an added feature. The interface for 30-Inch All-Glass Transparent OLED Touch Kiosk should match the visitor's expected interaction time: quick selection for public traffic, deeper menus for consultants, and simplified controls for exhibition use.
The team should check touch accuracy, response time, button size, language switching, cleaning routines, and public-use behavior before the final UI is approved.
![]()
![]()
The service plan for 30 Inch All-Glass Transparent OLED Touch Kiosk should be visible in the drawings. The recurring work includes surface cleaning, moving-part inspection, system restart access, and service clearance around the unit. The project file should state how the surface is cleaned, where the controller sits, who can restart or update the software, and what access remains if the display is built into a wall, counter, cabinet, or moving structure.
![]()
![]()
![]()
![]()
