Place of Origin:
Guangdong, China
Brand Name:
ZXTLCD
Certification:
CE/Rohs/FCC
Model Number:
ZXTLCD-HO752F
In large commercial spaces, brand showrooms, and high-end events, creating a visually impactful yet adaptable 3D display system has become a new challenge for brand display and space design. The 75-inch ultra-HD holographic video wall fan system offers a systematic solution for large-scale, high-requirement visual presentations through flexible multi-screen combinations and customized installation options.
The system uses 75-inch ultra-HD fan units as splicing modules, with each fan displaying an image size of 75×176 cm. Multiple fans, when spliced together, form a continuous, complete, giant suspended image, suitable for medium to long-distance viewing. It maintains a clear, 3D visual effect even in open spaces, creating an immersive visual experience.
The system supports multiple installation methods, allowing for flexible layout based on spatial structure and display needs:

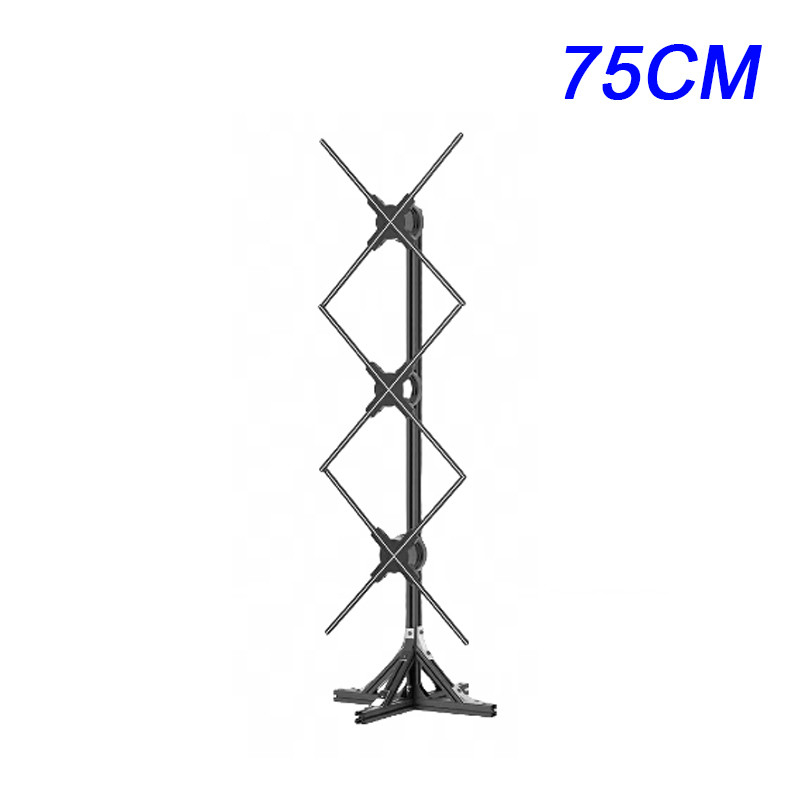

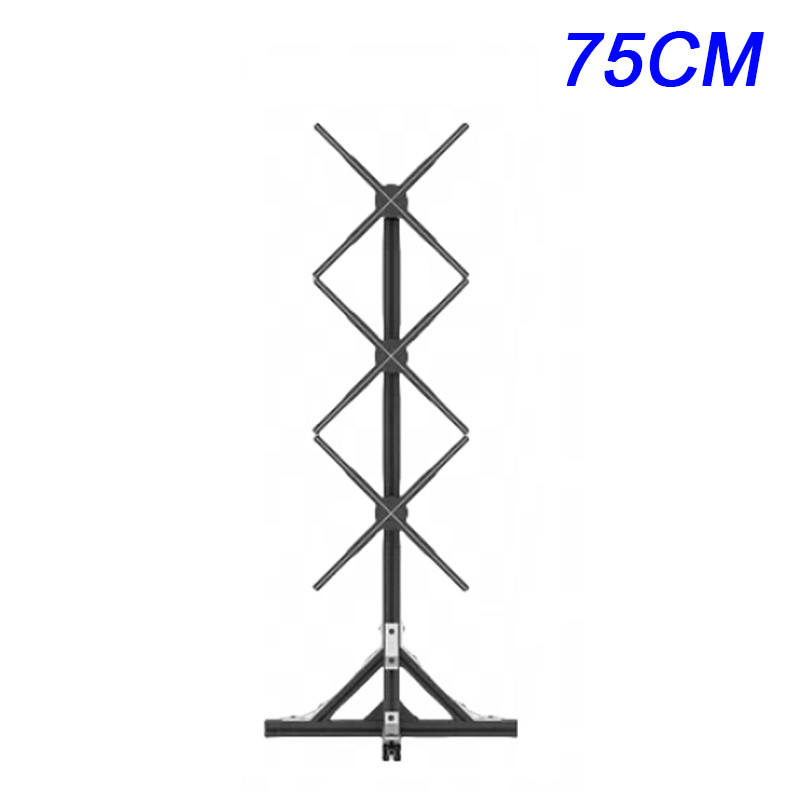

Three-Vertical Side-by-Side Installation:Suitable for vertical spaces, such as shopping mall atriums and exhibition hall entrances.

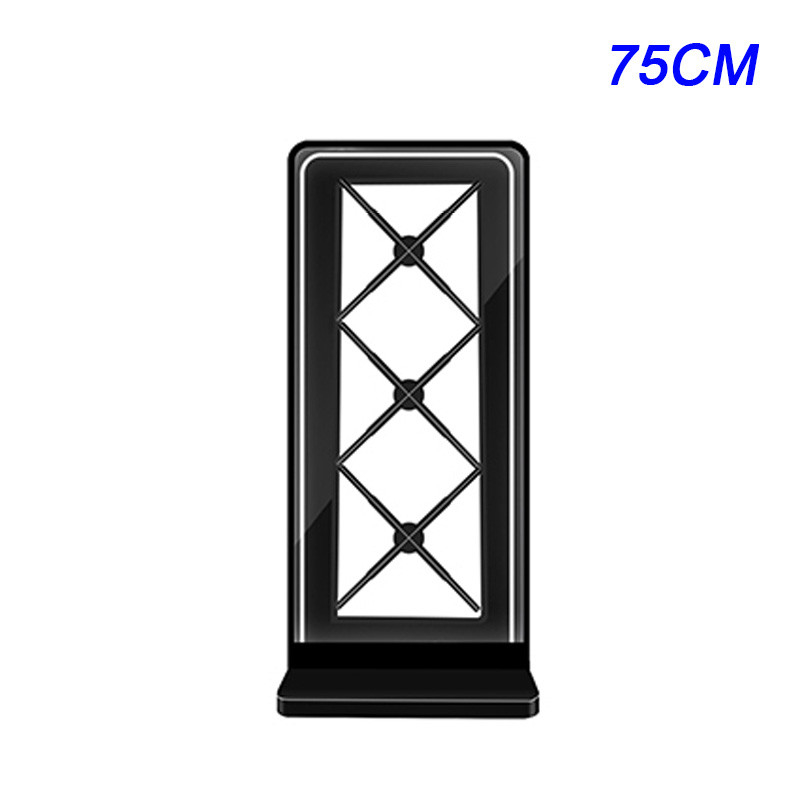

Three-Vertical Cabinet Installation:Embedded or freestanding cabinet design, offering a clean appearance and easy maintenance.
Horizontal Splicing:Suitable for wide-screen banner content displays, such as stage backdrops and brand walls.
Multi-Screen Free Combination:Supports multi-row, multi-column matrix splicing to construct curved, circular, or irregularly shaped holographic walls.
Brand Flagship Stores and Commercial Centers:Large-scale 3D product displays, dynamic brand story interpretation.
Exhibitions and Launch Events:Main visual presentation, product interactive experience areas, stage special effects backgrounds.
Museums and Science Museums:Artifact restoration, scientific principle visualization, immersive guided tours.
High-End Conferences and Events:Themed image walls, data visualization presentation, guest interaction backgrounds.
The system supports unified content management and split-screen control. Screen segmentation, synchronized playback, and dynamic scheduling can be achieved through professional software. Customized content design can be integrated to achieve multi-dimensional fusion of image and space, sound and interaction, creating an "editable spatial visual system."
|
Product Model |
ZXTLCD--M6 |
|
Device System |
Android Smart System |
|
Main Control (Main Frequency) |
AllwinnerA40I(Quad-core 1.2GHz) |
|
Display Size |
64.5*64.5CM |
|
Device Thickness |
8.5CM |
|
Resolution |
2800*896 |
|
Number of LED Chips |
896 |
|
Viewing Angle |
176° |
|
Rated Power |
175W/24V |
|
Input Voltage |
100-240VAC,50/60HZ |
|
Storage Space |
8GB |
|
Video/Image Format |
MP4/JPG, |
|
Bluetooth audio output |
Support |
|
Remote control |
Support |
|
Refresh rate |
3840MHz (2037 units of 1920MHz) |
|
Video processing method |
FPGA hardware processing |
|
Splicing method |
Supports local area network splicing / remote cloud splicing |
|
Decoding method |
Hardware decoding |
|
Driver IC |
Jichuang 2153 |
|
Splicing center point spacing |
460mm |
|
Content replacement method |
Mobile APP, WEB end, PC |
|
Software support system |
Windows,IOS,Android |
|
Color |
Black |
|
Weight |
0.78KG |
|
Transmittance |
92% |
|
Noise |
50 decibels |
|
Brightness |
3000cd/m2 |
|
Frame Rate |
24 frames per second |
|
Revolutions |
720/min |
|
Functional Features |
Supports point-to-point control, network remote control, clustering, text ball, image cube |
|
Provides upload software |
Free |
|
Product Material |
ABS+PC/AL |
|
Theoretical Machine Lifespan |
30,000 hours |
|
Warranty Period |
12 months |
|
Packaging Size/Weight |
Disassembled lamp board packaging size: Inner box (Size: 428*255*125mm, Weight: including device 2.10KG) Outer box one (1 unit packed, Size: 438*135*270mm, Weight: including device 2.45kg) Outer box two (6 units packed, Size: 438*390*535mm, Weight: including device 13.7KG) |
|
Unpacked lamp board dimensions: Inner box (Size: 558*555*128mm, Weight: including device 2.50KG) Outer box one (1 unit packed, Size: 590*568*160mm, Weight: including device 3.1kg) Outer box two (4 units packed, Size: 570*570*530mm, Weight: including device 11.2KG) |
|
|
Common application locations |
Retail chain stores, shopping centers, restaurants, clubs/bars, 4S stores, gas stations, subway/train stations, airports, customs, elevator advertising, exhibitions, press conferences, ceremonial events, education, etc. |
|
Pricing terms＊ |
Excluding tax, not including shipping |
|
Battery capacity calculation |
Estimated working time = battery capacity / (power / voltage * 1000) |
The 75-inch ultra-high-definition holographic splicing fan system is not just a display device, but also a scalable and customizable visual architecture. It breaks the limitations of traditional screens in terms of size and form, providing a holistic solution from visual to experiential perspectives for large spaces through modular splicing and flexible installation, allowing holographic technology to truly serve spatial narrative and brand expression.
