Place of Origin:
Guangdong, China
Brand Name:
ZXTLCD
Certification:
CE/Rohs/FCC
Model Number:
ZXTLCD-HOLO360R04
Win Attention Without Demanding Immediate Commitment
Trade-show visitors scan dozens of booths while moving. A 43-inch 360° holographic advertising box can create a visual interruption that is understood before a visitor agrees to stop. The best opening is a recognizable product motion or transformation, not a brand manifesto. Once attention is established, the booth team can begin the conversation. The HoloBox should support that human exchange rather than become a self-contained presentation that staff watch alongside visitors.
Design for the Aisle, Not the Conference Room
Use large forms, strong contrast and a short 10–20 second loop. Fine feature lists and subtitled interviews will be lost in a busy hall. Show one problem, one transformation or one product advantage. Make the loop readable without audio because neighboring booths and announcements will dominate. If the unit faces several aisles, confirm that each side receives a coherent view and that booth structures do not block the optical image.
Give Booth Staff a Conversation Trigger
The final scene can lead naturally to a question: Which configuration fits your project? Would you like to see the internal process? The team can then open a detailed demonstration on a tablet or physical sample. Train staff on the intended story and keep a quick method for restarting the loop. A holographic attraction generates more value when it is connected to a planned lead journey, badge scan or scheduled demonstration.

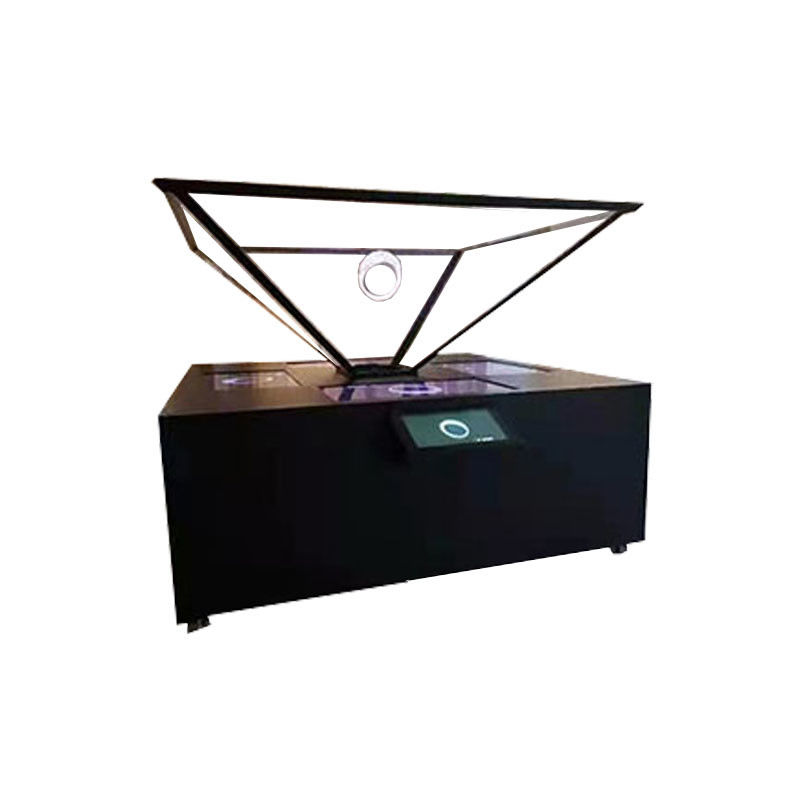

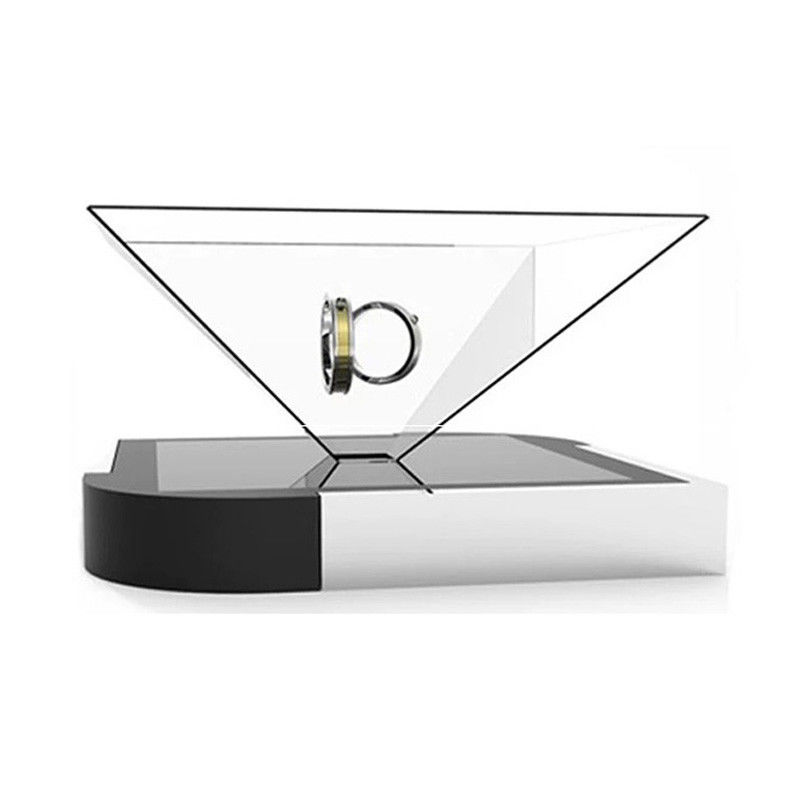

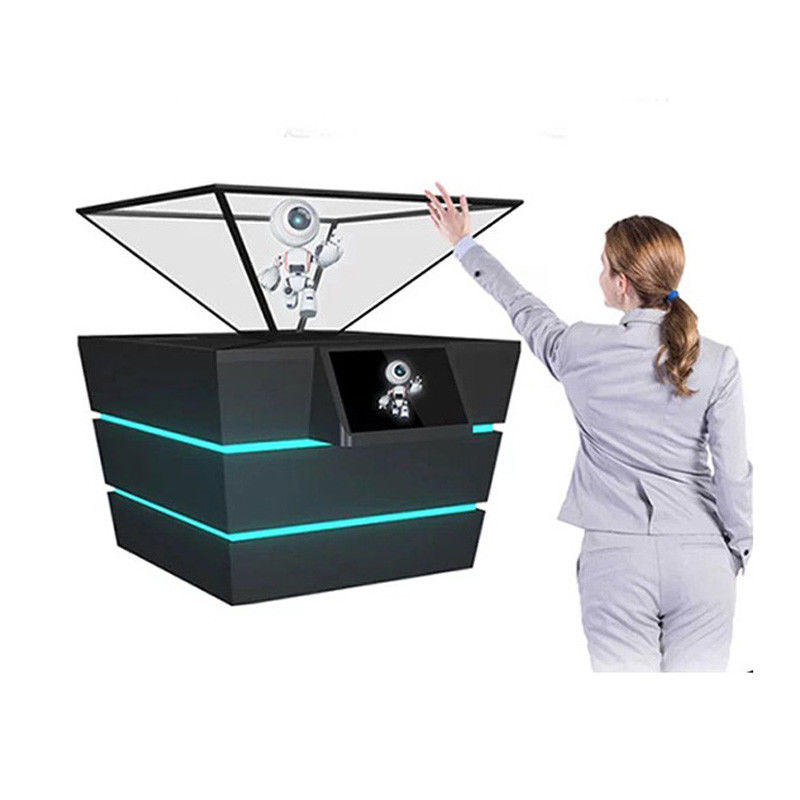

| 43 inch 360-Degree Holographic Display Cabinets | ||
| LCD Panel Parameters | Screen Size | 43 inches |
| Installation Style | Desktop / Floor‑standing / Interactive (optional) | |
| Aspect Ratio | 16:9 | |
| Product Dimensions | Refer to the dimensional drawing on the final page | |
| Viewing Angle | 89° | |
| Recommended Viewing Distance | >0.5 m | |
| Maximum Resolution | 1920 × 1080 | |
| Audio | Stereo left and right channels | |
| Brightness | 400 cd/m² | |
| Image Quality | Fine and detailed | |
| Contrast Ratio | 1200:1 | |
| 2D Video Formats | Supports commonly used video formats | |
| Active Display Area | 940.896 × 529.254 mm | |
| Interfaces | USB, HDMI and Ethernet | |
| Maximum Imaging Area | 940 × 529 mm | |
| Holographic Glass | White‑coated / gray‑coated glass | |
| Optional Host – Standalone Player | Mainboard | Industrial‑grade mainboard |
| Supported Video Formats | AVI, MP4, TS, MKV, MPG, DAT, VOB | |
| Supported Video Resolution | Up to 1920×1080 at 30 fps | |
| Supported Image Formats | JPG, JPEG, BMP, PNG | |
| Supported Audio Format | MP3 | |
| MP3 Sampling Rate | 32–48 kHz | |
| MP3 Bit Rate | 32–320 kbps | |
| Maximum Bit Rate | 20 Mbps | |
| Interfaces | USB flash drive, SD card, HDMI | |
| Playback Methods | USB playback or connection to an external computer | |
| Optional Host – MP021 Player | Mainboard | Industrial‑grade MP021 media player |
| Supported Video Formats | AVI, MP4 | |
| Supported Video Resolution | Up to 1920×1080 at 60 fps | |
| Supported Image Formats | JPG, JPEG, BMP, PNG | |
| Supported Audio Format | MP3 | |
| MP3 Sampling Rate | 32–48 kHz | |
| MP3 Bit Rate | 32–320 kbps | |
| Maximum Bit Rate | 20 Mbps | |
| Playback Interfaces | USB flash drive, SD card | |
| Main Feature | Stable standalone media playback | |
| Optional Host – Android | Mainboard | RK3288 |
| Processor | Quad‑core Cortex‑A17, up to 1.8 GHz | |
| GPU | Mali‑T764 | |
| RAM | 2 GB DDR3; supports up to 4 GB | |
| Internal Storage | 8 GB / 16 GB / 32 GB eMMC optional; 16 GB standard | |
| Operating System | Android 5.1 | |
| Interfaces | 2×USB, RJ45 Ethernet, TF card slot | |
| Optional Host – Standard PC (Celeron) | Processor | Intel 1037U, dual‑core, dual‑thread, 1.8 GHz |
| Mainboard | Mini‑ITX with Intel Bay Trail SoC | |
| RAM | Kingston 4 GB DDR3 1600 | |
| Storage | 120 GB SSD | |
| Graphics | Integrated Intel HD Graphics (Dynamic Video Memory) | |
| Power Supply | Integrated 12 V | |
| Network | Realtek 8111E Gigabit Ethernet, 2.4 GHz Wi‑Fi | |
| Optional Host – Intel Core i3 | Processor | 4th‑gen Intel Core i3‑3217U, dual‑core, four‑thread, 1.8 GHz, 17 W |
| Mainboard | Mini‑ITX with HM76 chipset | |
| RAM | Kingston 4 GB DDR3 1600 | |
| Storage | 120 GB SSD | |
| Graphics | Integrated Intel HD Graphics 4000 | |
| Power Supply | Integrated 12 V | |
| Network | Realtek 8111E Gigabit Ethernet, 2.4 GHz Wi‑Fi | |
| Optional Host – Intel Core i5 | Processor | 4th‑gen Intel Core i5‑3317U, dual‑core, four‑thread, 1.7 GHz, 17 W |
| Mainboard | Mini‑ITX with HM76 chipset | |
| RAM | Kingston 4 GB DDR3 1600 | |
| Storage | 120 GB SSD | |
| Graphics | Integrated Intel HD Graphics 4000 | |
| Power Supply | Integrated 12 V | |
| Network | Realtek 8111E Gigabit Ethernet, 2.4 GHz Wi‑Fi | |
| Optional Host – Intel Core i7 | Processor | 7th‑gen Intel Core i7‑7500U, dual‑core, four‑thread, 2.7 GHz, 15 W |
| Mainboard | Mini‑ITX architecture | |
| RAM | Kingston 4 GB DDR3 1600 | |
| Storage | 120 GB SSD | |
| Graphics | Integrated Intel HD Graphics 620 | |
| Power Supply | Integrated 12 V | |
| Network | Realtek 8111E Gigabit Ethernet, 2.4 GHz Wi‑Fi | |
| Optional Touch – Infrared | Integration Method | Seamlessly built‑in and embedded |
| Touch Technology | Infrared multi‑touch | |
| Touch Points | Standard 10‑point | |
| Input Method | Finger, stylus, or any non‑transparent object | |
| Response Time | 5 ms | |
| Positioning Accuracy | ±1.5 mm | |
| Touch Resolution | 3840 × 2160 | |
| Minimum Recognizable Touch Object | ≥2.5 mm | |
| Computer Recognition | Automatically recognized by OS | |
| Communication Interface | Full‑speed USB 2.0 | |
| Availability | Optional with PC configuration | |
| Optional Touch – Capacitive | Touch Method | Finger or capacitive stylus |
| Finger Touch Life | ≥35,000,000 touches | |
| Touch Activation Force | 10–60 g | |
| Response Time | <10 ms | |
| Touch Points | 10 points | |
| Operating Pressure | <10 g | |
| Touchscreen Thickness | 1.6 mm; glass thickness customizable | |
| Layer Structure | 1.1 mm glass + 0.125 mm top ITO film + 0.125 mm bottom ITO film | |
| Surface Hardness | ≥7H | |
| Light Transmittance | >85% | |
| Relative Humidity | 10%–90% RH at 40°C, non‑condensing | |
| Storage Temperature | −15°C to 40°C at <90% RH; 40°C to 70°C at <60% RH | |
| Touch Durability | 50,000,000 touches at same point under normal operation | |
| Availability | Optional with PC configuration | |
| Electrical & Environmental | Input Voltage | AC 100–240 V, 50–60 Hz |
| Speaker Output | 8 Ω, 5 W × 2 | |
| Total Power Consumption | <20 W | |
| Standby Power Consumption | <3 W | |
| Operating Temperature | −20°C to 50°C | |
| Storage Temperature | −20°C to 60°C | |
| Operating Humidity | 10%–90% RH, non‑condensing | |
| Packaging List | Power Cable | 1 |
| Keys | 1 set | |
| Warranty Card | 1 | |
| Certificate of Conformity | 1 | |
| Remote Control | 1 (included with standalone player version) | |
Treat Shipping as Part of Product Design
Show equipment is loaded, moved and rebuilt repeatedly. Specify a flight case, foam layout, glass protection and a visual packing checklist. Record the cabinet’s assembled and packed dimensions for freight planning. Use captive fasteners and clearly labeled cables where possible. Store the approved media locally and carry a backup device. The setup guide should allow a trained booth technician—not only the manufacturer—to reach a verified show state within the allocated installation window.
Measure More Than Foot Traffic
A crowd around the display is not automatically a successful event. Track qualified conversations, demonstrations started, QR visits or meetings booked. Compare performance with the cabinet active and inactive during similar periods. Record which loop attracts the relevant audience, then revise the next show’s media. This creates an evidence-based content program and differentiates the HoloBox from a novelty purchased once and repeated without learning.
Avoid an Attraction with No Booth Follow-Through
Do not position the cabinet where staff cannot reach the visitors it attracts. A spectacular loop at the edge of a booth may gather photographs while generating few qualified conversations. Align the observation zone with a staffed welcome point and give the team a simple next step. If the show objective is private scheduled meetings rather than aisle traffic, a quieter guided visualization inside the booth may be a better use of the same hardware.
![]()
Frequently Asked Questions
How long should a trade-show loop be?
Usually 10–20 seconds for the attraction layer, with detailed explanation handled elsewhere.
Is audio recommended?
Only as a secondary element; the visual message should work in a noisy hall without it.
What should travel with the cabinet?
Flight case, packing guide, setup checklist, labeled cables, approved media and a tested backup copy.
Project Inquiry
For an accurate proposal, send the intended venue, viewing directions, installation drawings, operating schedule, content concept and required control method. Final dimensions, resolution, imaging area, player, touch options, power and packing must be confirmed in the quotation and approved technical drawing before production.
![]()
![]()
![]()
